Create a program that will use nested loops to create the fo

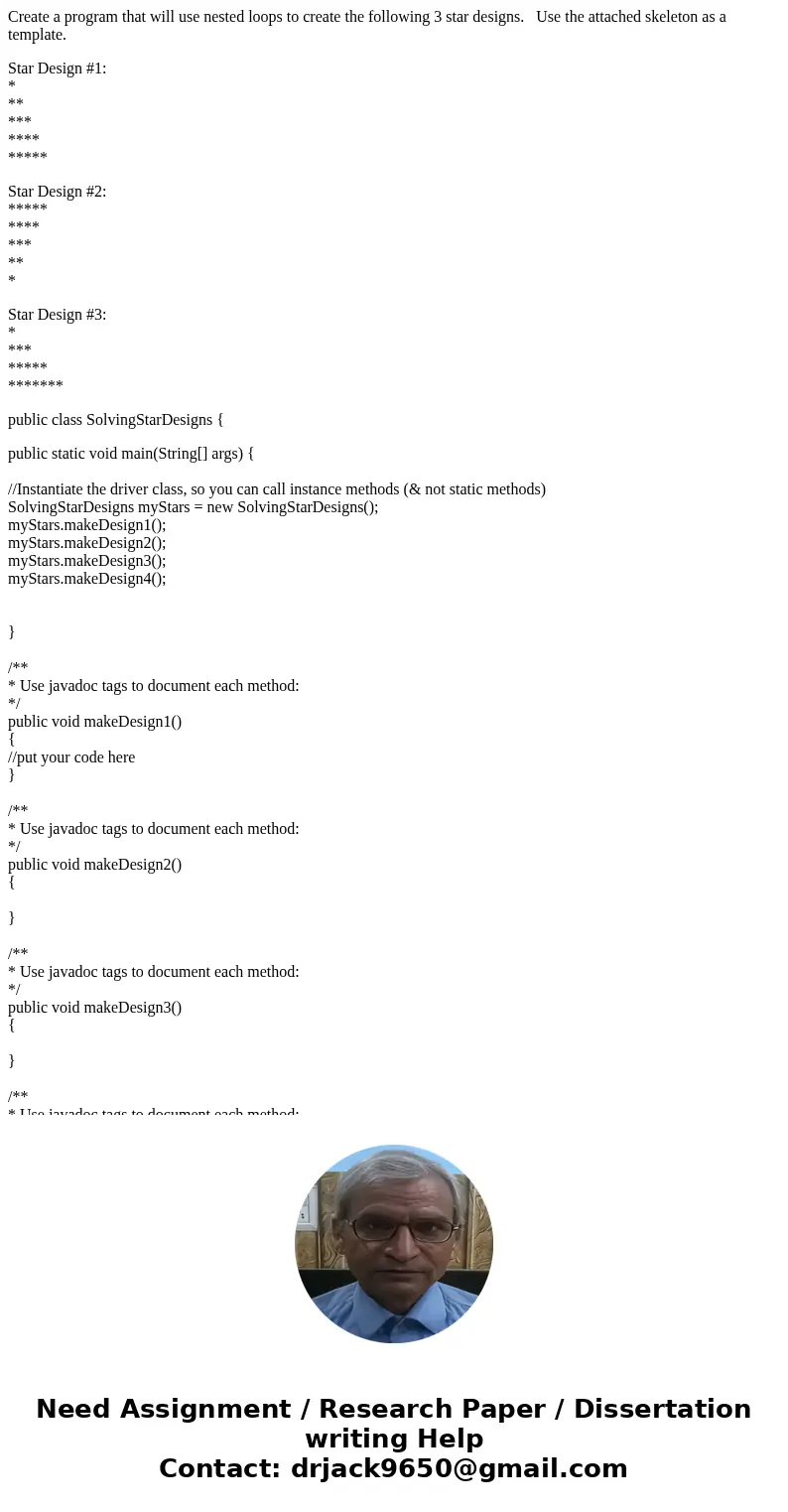

Create a program that will use nested loops to create the following 3 star designs.   Use the attached skeleton as a template.

Star Design #1:
*
**
***
****
*****

Star Design #2:
*****
****
***
**
*

Star Design #3:
*
***
*****
*******

public class SolvingStarDesigns {

public static void main(String[] args) {

//Instantiate the driver class, so you can call instance methods (& not static methods)
SolvingStarDesigns myStars = new SolvingStarDesigns();
myStars.makeDesign1();
myStars.makeDesign2();
myStars.makeDesign3();
myStars.makeDesign4();


}

/**
* Use javadoc tags to document each method:
*/
public void makeDesign1()
{
//put your code here
}

/**
* Use javadoc tags to document each method:
*/
public void makeDesign2()
{

}

/**
* Use javadoc tags to document each method:
*/
public void makeDesign3()
{

}

/**
* Use javadoc tags to document each method:
*/
public void makeDesign4()
{

}



}

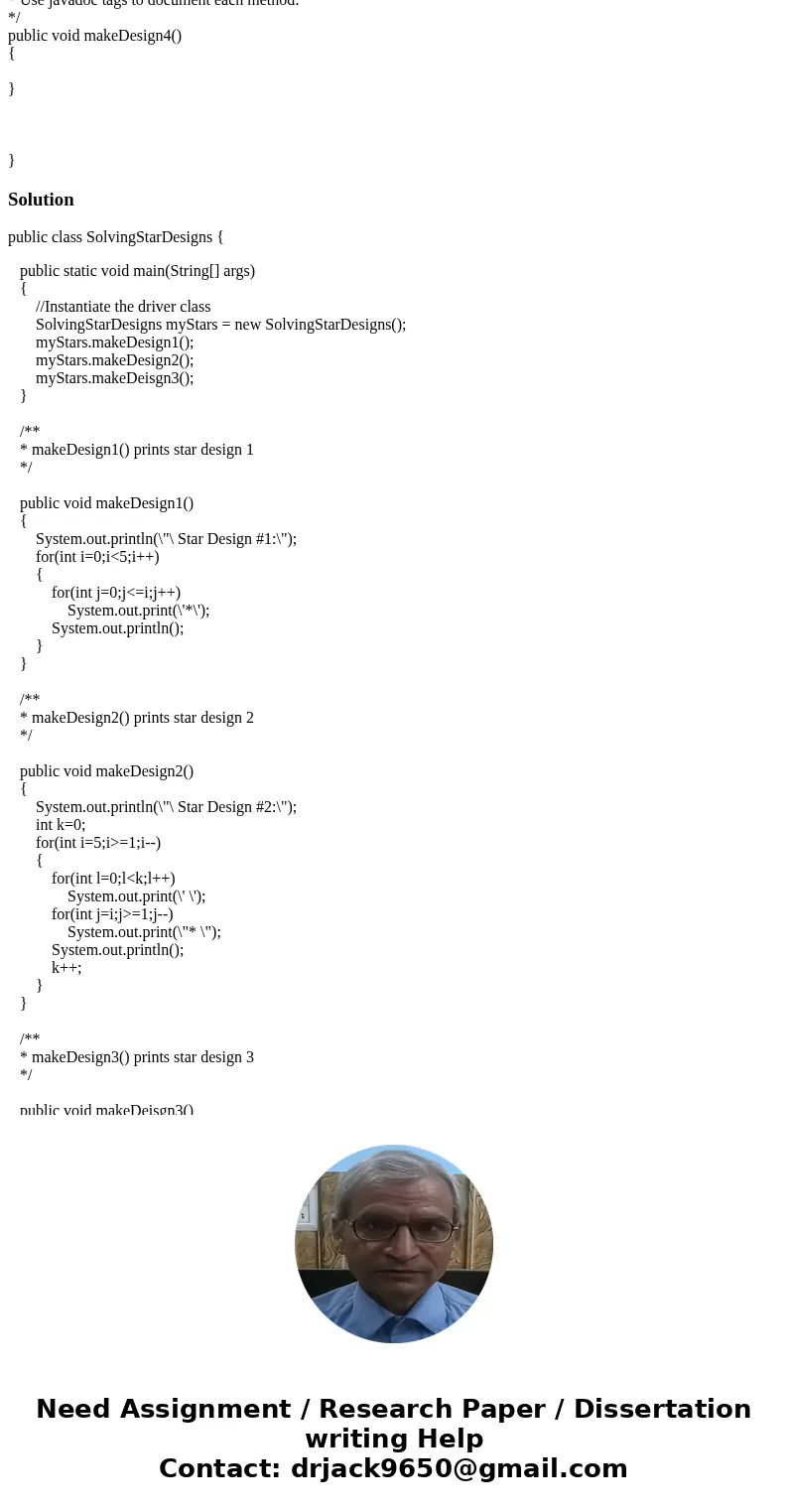

Solution

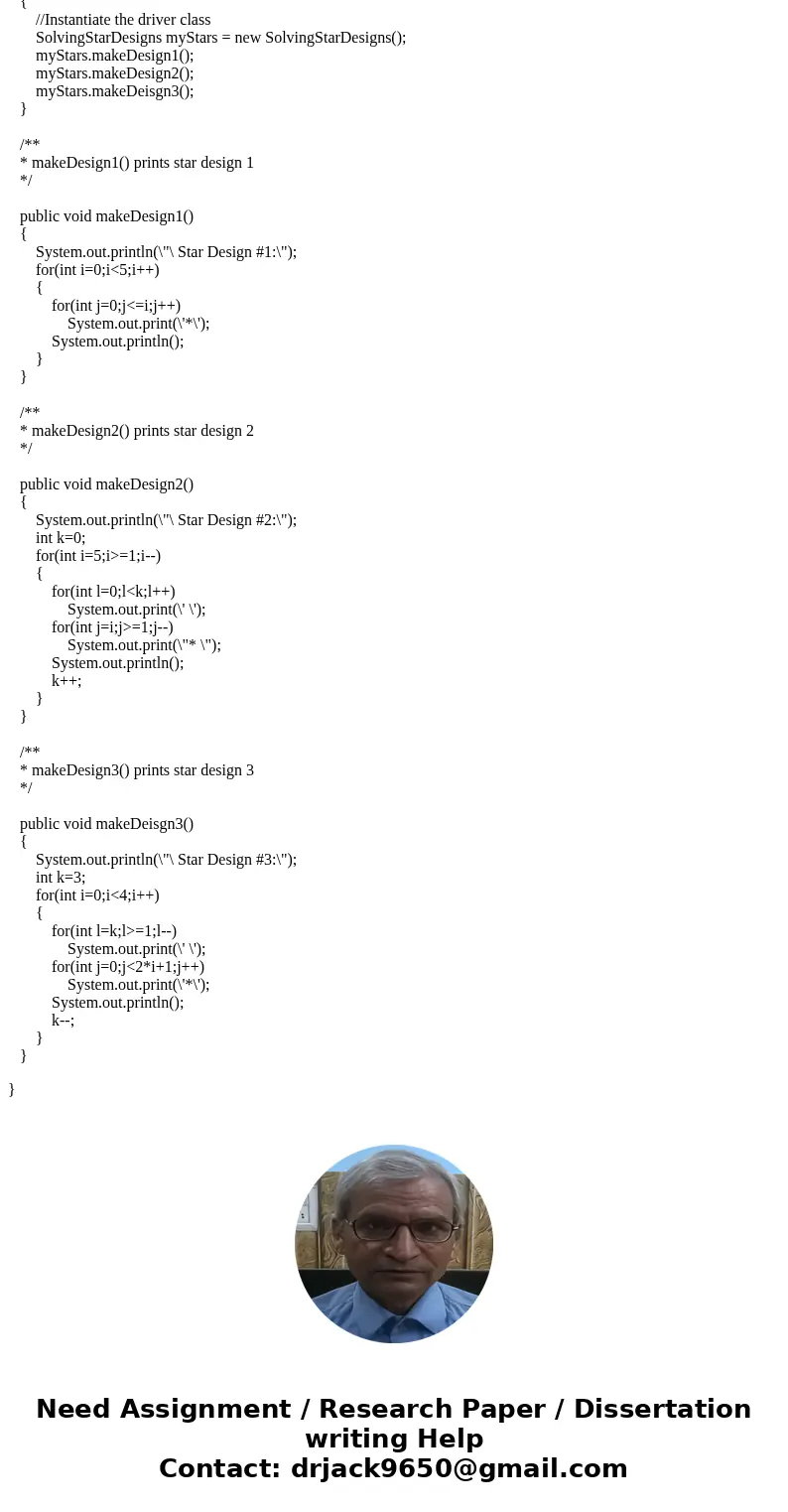

public class SolvingStarDesigns {

   public static void main(String[] args)
   {
       //Instantiate the driver class
       SolvingStarDesigns myStars = new SolvingStarDesigns();
       myStars.makeDesign1();
       myStars.makeDesign2();
       myStars.makeDeisgn3();
   }

   /**
   * makeDesign1() prints star design 1
   */

   public void makeDesign1()
   {
       System.out.println(\"\ Star Design #1:\");
       for(int i=0;i<5;i++)
       {
           for(int j=0;j<=i;j++)
               System.out.print(\'*\');
           System.out.println();
       }
   }

   /**
   * makeDesign2() prints star design 2
   */

   public void makeDesign2()
   {
       System.out.println(\"\ Star Design #2:\");
       int k=0;
       for(int i=5;i>=1;i--)
       {
           for(int l=0;l<k;l++)
               System.out.print(\' \');
           for(int j=i;j>=1;j--)
               System.out.print(\"* \");
           System.out.println();
           k++;
       }
   }

   /**
   * makeDesign3() prints star design 3
   */

   public void makeDeisgn3()
   {
       System.out.println(\"\ Star Design #3:\");
       int k=3;
       for(int i=0;i<4;i++)
       {
           for(int l=k;l>=1;l--)
               System.out.print(\' \');
           for(int j=0;j<2*i+1;j++)
               System.out.print(\'*\');
           System.out.println();
           k--;
       }
   }

}
