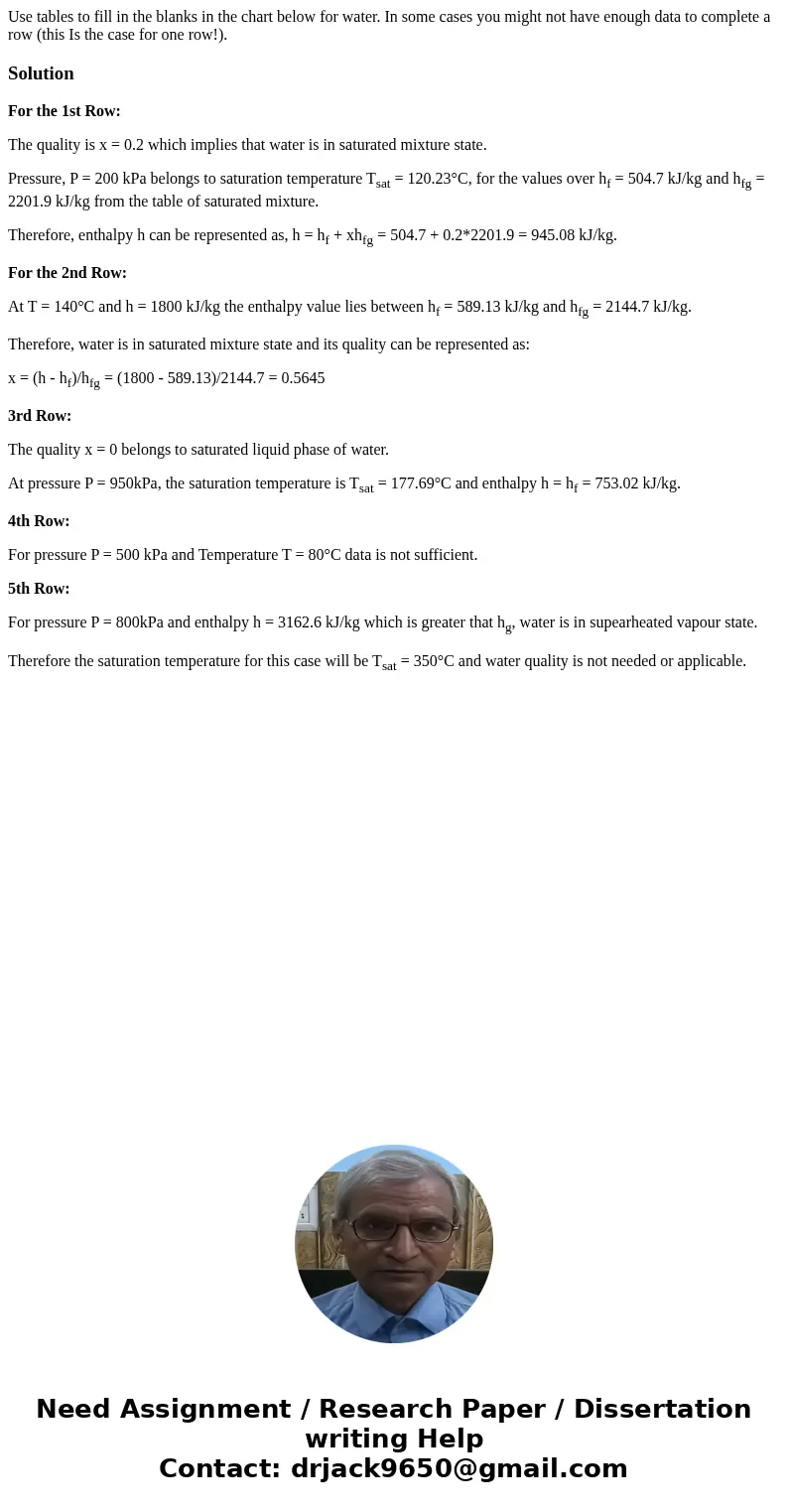

Use tables to fill in the blanks in the chart below for water. In some cases you might not have enough data to complete a row (this Is the case for one row!).

Solution

For the 1st Row:

The quality is x = 0.2 which implies that water is in saturated mixture state.

Pressure, P = 200 kPa belongs to saturation temperature T_sat = 120.23°C, for the values over h_f = 504.7 kJ/kg and h_fg = 2201.9 kJ/kg from the table of saturated mixture.

Therefore, enthalpy h can be represented as, h = h_f + xh_fg = 504.7 + 0.2*2201.9 = 945.08 kJ/kg.

For the 2nd Row:

At T = 140°C and h = 1800 kJ/kg the enthalpy value lies between h_f = 589.13 kJ/kg and h_fg = 2144.7 kJ/kg.

Therefore, water is in saturated mixture state and its quality can be represented as:

x = (h - h_f)/h_fg = (1800 - 589.13)/2144.7 = 0.5645

3rd Row:

The quality x = 0 belongs to saturated liquid phase of water.

At pressure P = 950kPa, the saturation temperature is T_sat = 177.69°C and enthalpy h = h_f = 753.02 kJ/kg.

4th Row:

For pressure P = 500 kPa and Temperature T = 80°C data is not sufficient.

5th Row:

For pressure P = 800kPa and enthalpy h = 3162.6 kJ/kg which is greater that h_g, water is in supearheated vapour state.

Therefore the saturation temperature for this case will be T_sat = 350°C and water quality is not needed or applicable.
