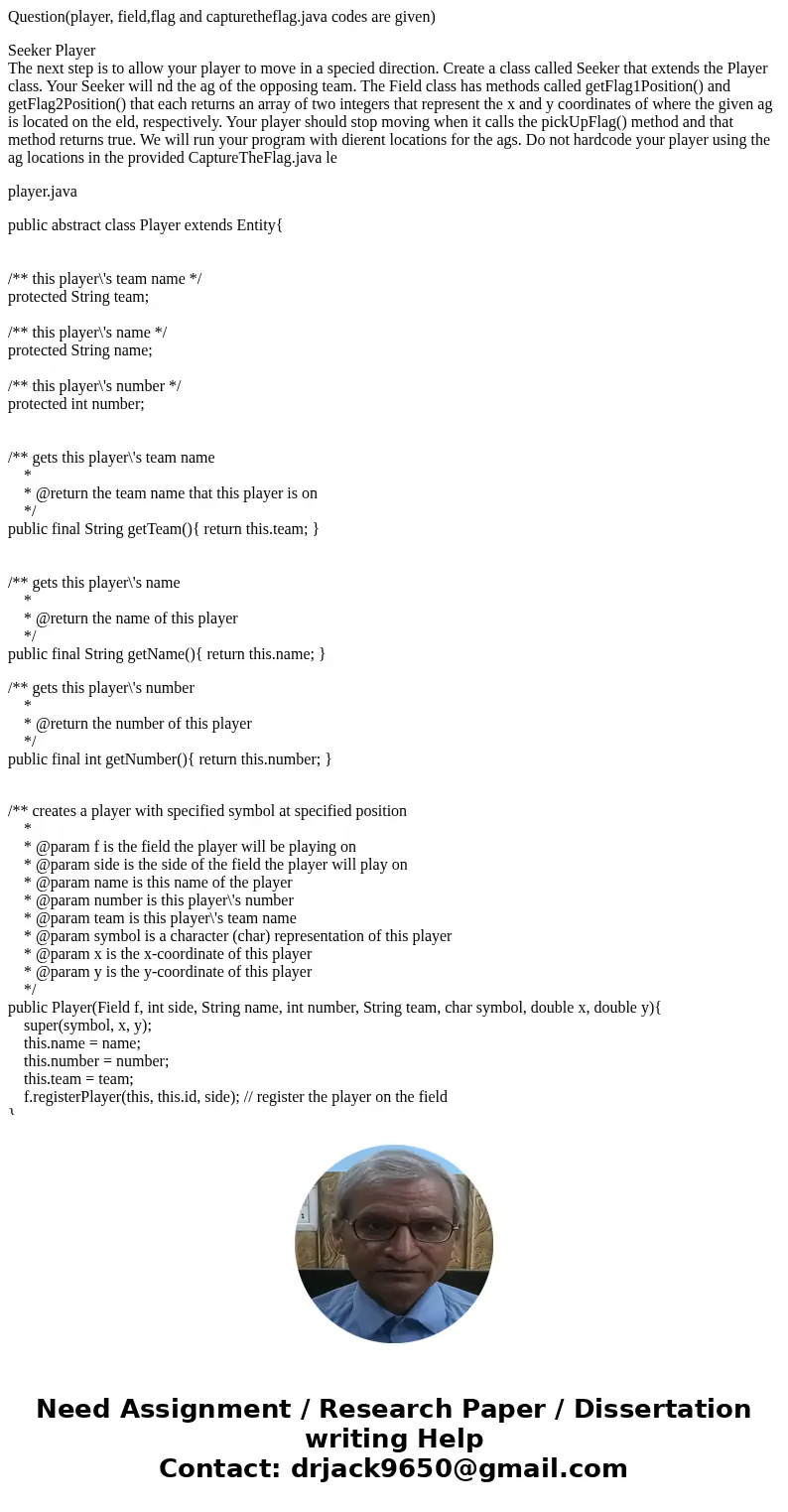

Question(player, field,flag and capturetheflag.java codes are given)

Seeker Player
The next step is to allow your player to move in a specied direction. Create a class called Seeker that extends the Player class. Your Seeker will nd the ag of the opposing team. The Field class has methods called getFlag1Position() and getFlag2Position() that each returns an array of two integers that represent the x and y coordinates of where the given ag is located on the eld, respectively. Your player should stop moving when it calls the pickUpFlag() method and that method returns true. We will run your program with dierent locations for the ags. Do not hardcode your player using the ag locations in the provided CaptureTheFlag.java le

player.java

public abstract class Player extends Entity{

/** this player\'s team name */
protected String team;

/** this player\'s name */
protected String name;

/** this player\'s number */
protected int number;


/** gets this player\'s team name
    *
    * @return the team name that this player is on
    */
public final String getTeam(){ return this.team; }

/** gets this player\'s name
    *
    * @return the name of this player
    */
public final String getName(){ return this.name; }

/** gets this player\'s number
    *
    * @return the number of this player
    */
public final int getNumber(){ return this.number; }

/** creates a player with specified symbol at specified position
    *
    * @param f is the field the player will be playing on
    * @param side is the side of the field the player will play on
    * @param name is this name of the player
    * @param number is this player\'s number
    * @param team is this player\'s team name
    * @param symbol is a character (char) representation of this player
    * @param x is the x-coordinate of this player
    * @param y is the y-coordinate of this player
    */
public Player(Field f, int side, String name, int number, String team, char symbol, double x, double y){
    super(symbol, x, y);
    this.name = name;
    this.number = number;
    this.team = team;
    f.registerPlayer(this, this.id, side); // register the player on the field
}

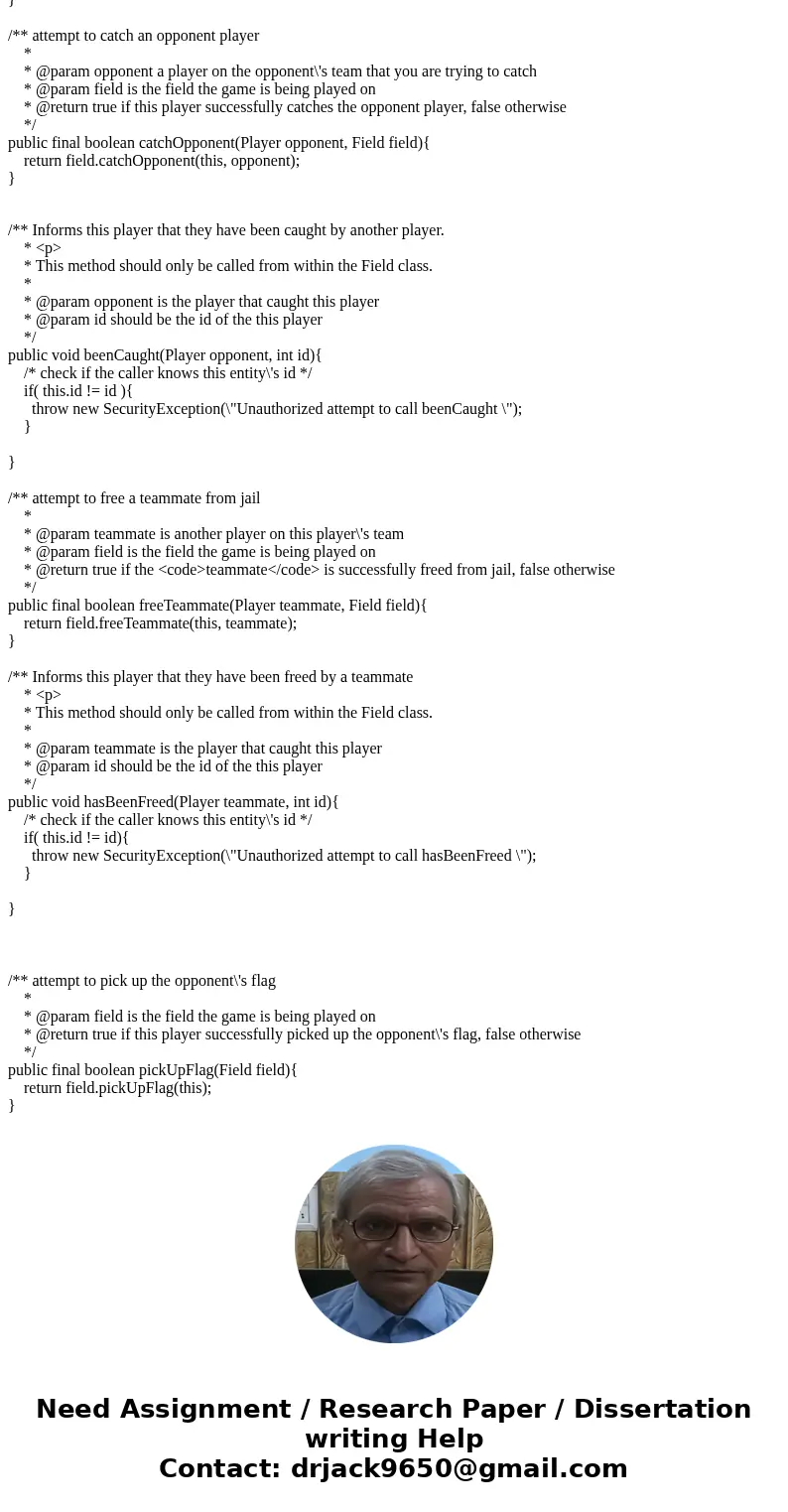

/** attempt to catch an opponent player
    *
    * @param opponent a player on the opponent\'s team that you are trying to catch
    * @param field is the field the game is being played on
    * @return true if this player successfully catches the opponent player, false otherwise
    */
public final boolean catchOpponent(Player opponent, Field field){
    return field.catchOpponent(this, opponent);
}

/** Informs this player that they have been caught by another player.
 *
 * This method should only be called from within the Field class.
 *
 * @param opponent is the player that caught this player
 * @param id should be the id of the this player
 */
public void beenCaught(Player opponent, int id){
 /* check if the caller knows this entity\'s id */
 if( this.id != id ){
 throw new SecurityException(\"Unauthorized attempt to call beenCaught \");
 }

}

/** attempt to free a teammate from jail
 *
 * @param teammate is another player on this player\'s team
 * @param field is the field the game is being played on
 * @return true if the <code>teammate</code> is successfully freed from jail, false otherwise
 */
public final boolean freeTeammate(Player teammate, Field field){
 return field.freeTeammate(this, teammate);
}

/** Informs this player that they have been freed by a teammate
 *
 * This method should only be called from within the Field class.
 *
 * @param teammate is the player that caught this player
 * @param id should be the id of the this player
 */
public void hasBeenFreed(Player teammate, int id){
 /* check if the caller knows this entity\'s id */
 if( this.id != id){
 throw new SecurityException(\"Unauthorized attempt to call hasBeenFreed \");
 }

}

/** attempt to pick up the opponent\'s flag
 *
 * @param field is the field the game is being played on
 * @return true if this player successfully picked up the opponent\'s flag, false otherwise
 */
public final boolean pickUpFlag(Field field){
 return field.pickUpFlag(this);
}

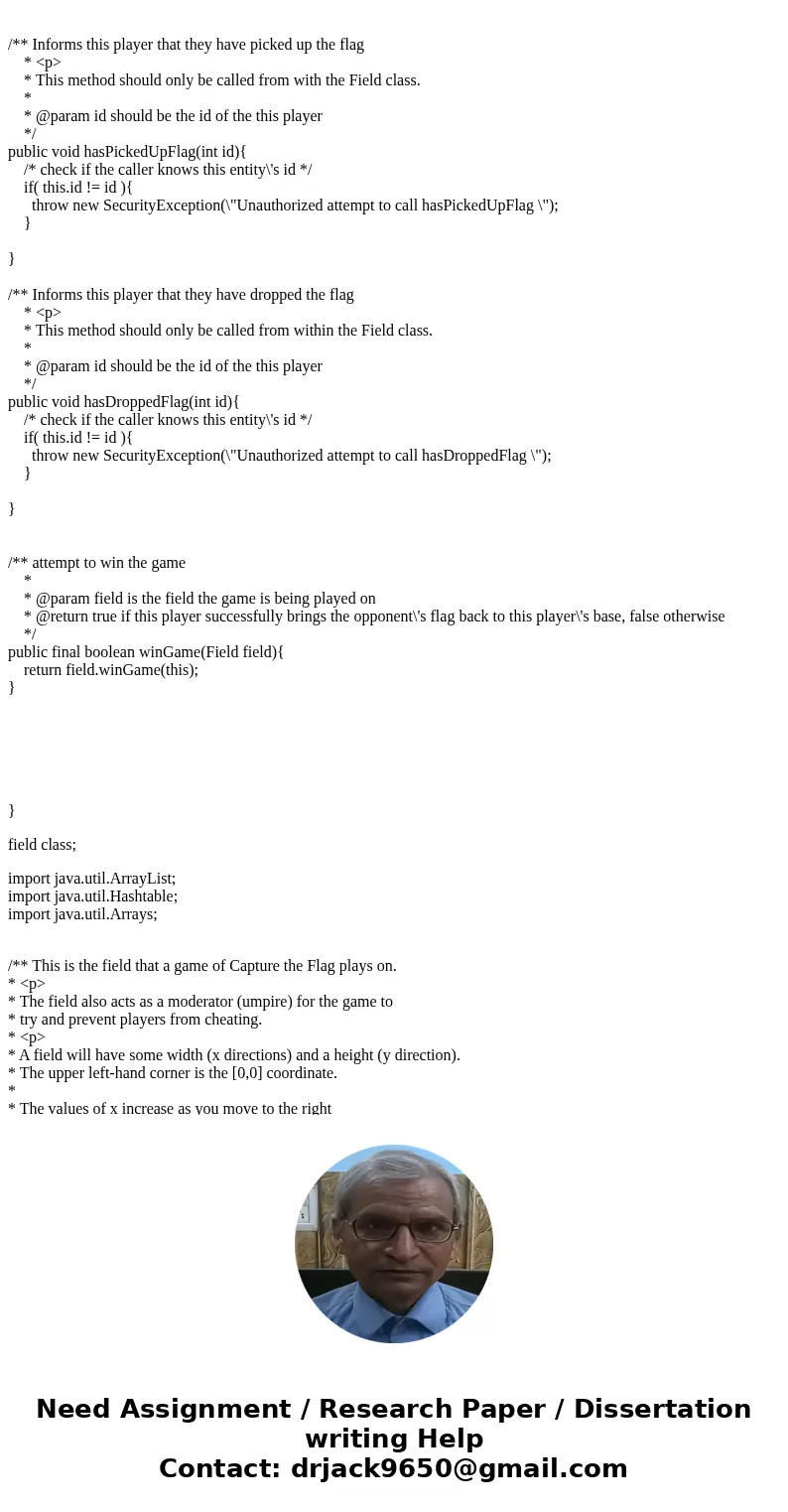

/** Informs this player that they have picked up the flag
 *
 * This method should only be called from with the Field class.
 *
 * @param id should be the id of the this player
 */
public void hasPickedUpFlag(int id){
 /* check if the caller knows this entity\'s id */
 if( this.id != id ){
 throw new SecurityException(\"Unauthorized attempt to call hasPickedUpFlag \");
 }

}

/** Informs this player that they have dropped the flag
 *
 * This method should only be called from within the Field class.
 *
 * @param id should be the id of the this player
 */
public void hasDroppedFlag(int id){
 /* check if the caller knows this entity\'s id */
 if( this.id != id ){
 throw new SecurityException(\"Unauthorized attempt to call hasDroppedFlag \");
 }

}

/** attempt to win the game
 *
 * @param field is the field the game is being played on
 * @return true if this player successfully brings the opponent\'s flag back to this player\'s base, false otherwise
 */
public final boolean winGame(Field field){
 return field.winGame(this);
}

}

field class;

import java.util.ArrayList;
import java.util.Hashtable;
import java.util.Arrays;

/** This is the field that a game of Capture the Flag plays on.
*
* The field also acts as a moderator (umpire) for the game to
* try and prevent players from cheating.
*
* A field will have some width (x directions) and a height (y direction).
* The upper left-hand corner is the [0,0] coordinate.
*
* The values of x increase as you move to the right
* The values of y increase as you move down
*/

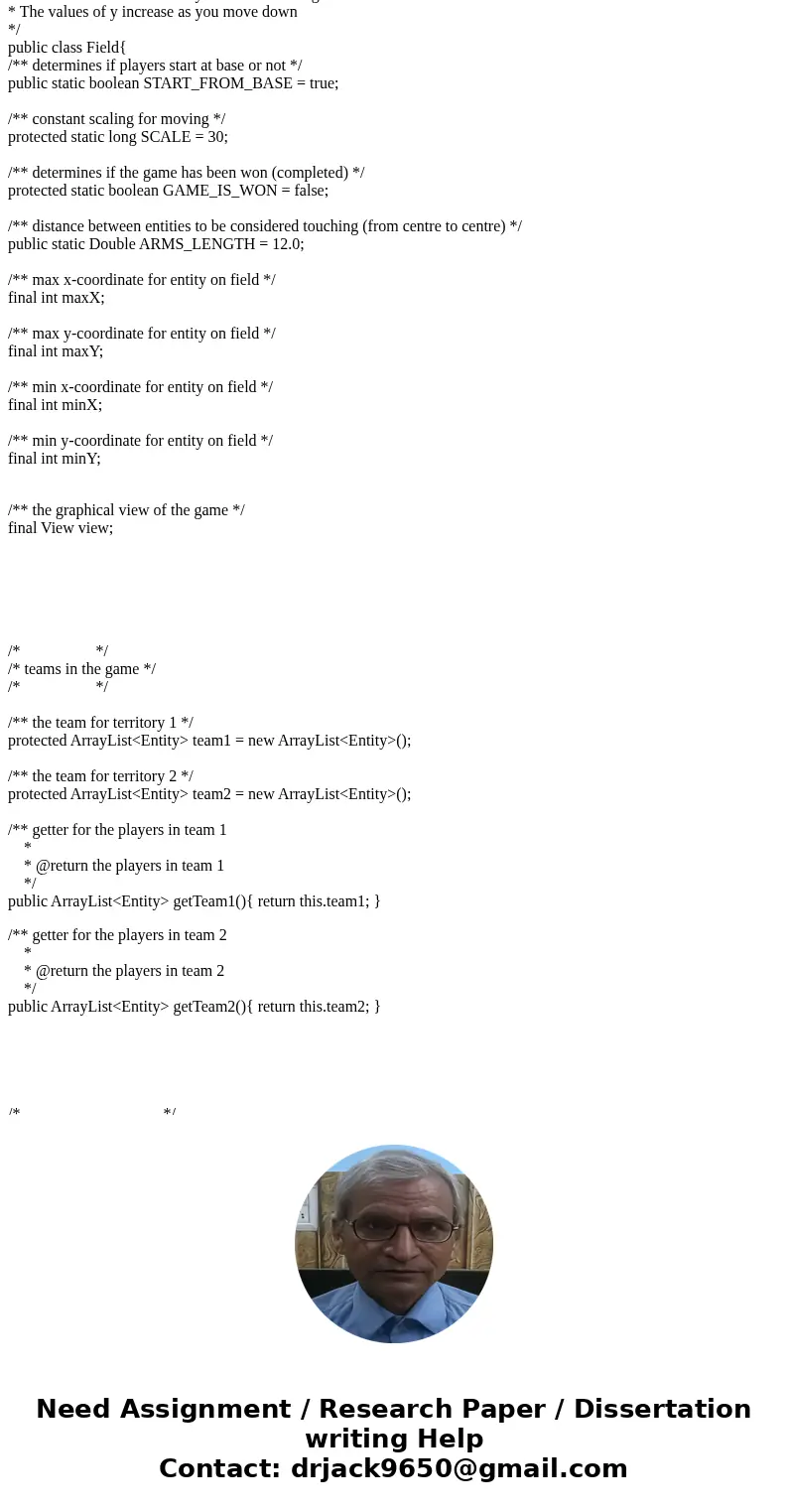

public class Field{
/** determines if players start at base or not */
public static boolean START_FROM_BASE = true;

/** constant scaling for moving */
protected static long SCALE = 30;

/** determines if the game has been won (completed) */
protected static boolean GAME_IS_WON = false;

/** distance between entities to be considered touching (from centre to centre) */
public static Double ARMS_LENGTH = 12.0;

/** max x-coordinate for entity on field */
final int maxX;

/** max y-coordinate for entity on field */
final int maxY;

/** min x-coordinate for entity on field */
final int minX;

/** min y-coordinate for entity on field */
final int minY;

/** the graphical view of the game */
final View view;

/* */
/* teams in the game */
/* */

/** the team for territory 1 */
protected ArrayList<Entity> team1 = new ArrayList<Entity>();

/** the team for territory 2 */
protected ArrayList<Entity> team2 = new ArrayList<Entity>();

/** getter for the players in team 1
 *
 * @return the players in team 1
 */
public ArrayList<Entity> getTeam1(){ return this.team1; }

/** getter for the players in team 2
 *
 * @return the players in team 2
 */
public ArrayList<Entity> getTeam2(){ return this.team2; }

/* */

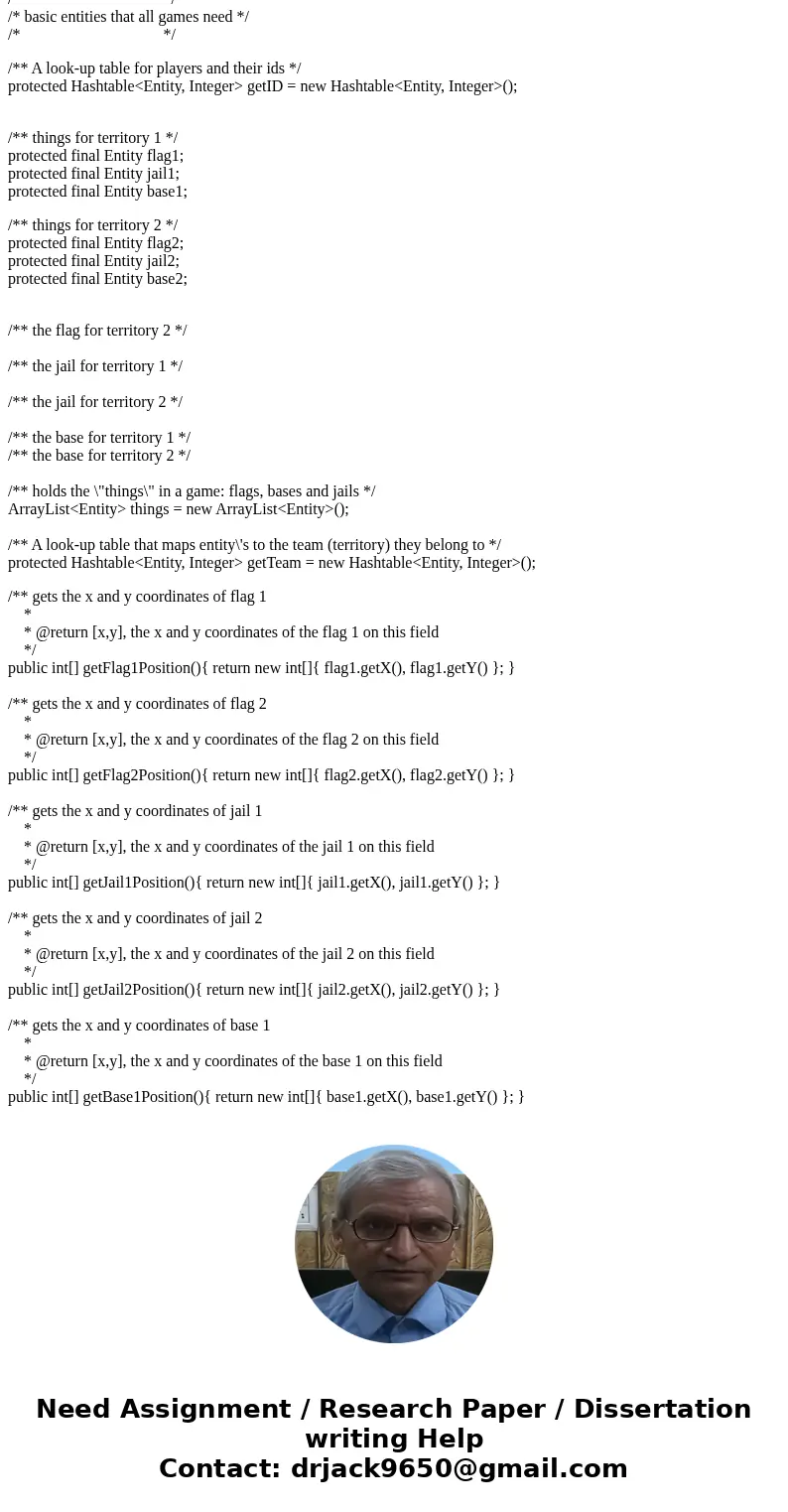

/* basic entities that all games need */
/* */

/** A look-up table for players and their ids */
protected Hashtable<Entity, Integer> getID = new Hashtable<Entity, Integer>();

/** things for territory 1 */
protected final Entity flag1;
protected final Entity jail1;
protected final Entity base1;

/** things for territory 2 */
protected final Entity flag2;
protected final Entity jail2;
protected final Entity base2;

/** the flag for territory 2 */

/** the jail for territory 1 */

/** the jail for territory 2 */

/** the base for territory 1 */
/** the base for territory 2 */

/** holds the \"things\" in a game: flags, bases and jails */
ArrayList<Entity> things = new ArrayList<Entity>();

/** A look-up table that maps entity\'s to the team (territory) they belong to */
protected Hashtable<Entity, Integer> getTeam = new Hashtable<Entity, Integer>();

/** gets the x and y coordinates of flag 1
 *
 * @return [x,y], the x and y coordinates of the flag 1 on this field
 */
public int[] getFlag1Position(){ return new int[]{ flag1.getX(), flag1.getY() }; }

/** gets the x and y coordinates of flag 2
 *
 * @return [x,y], the x and y coordinates of the flag 2 on this field
 */
public int[] getFlag2Position(){ return new int[]{ flag2.getX(), flag2.getY() }; }

/** gets the x and y coordinates of jail 1
 *
 * @return [x,y], the x and y coordinates of the jail 1 on this field
 */
public int[] getJail1Position(){ return new int[]{ jail1.getX(), jail1.getY() }; }

/** gets the x and y coordinates of jail 2
 *
 * @return [x,y], the x and y coordinates of the jail 2 on this field
 */
public int[] getJail2Position(){ return new int[]{ jail2.getX(), jail2.getY() }; }

/** gets the x and y coordinates of base 1
 *
 * @return [x,y], the x and y coordinates of the base 1 on this field
 */
public int[] getBase1Position(){ return new int[]{ base1.getX(), base1.getY() }; }

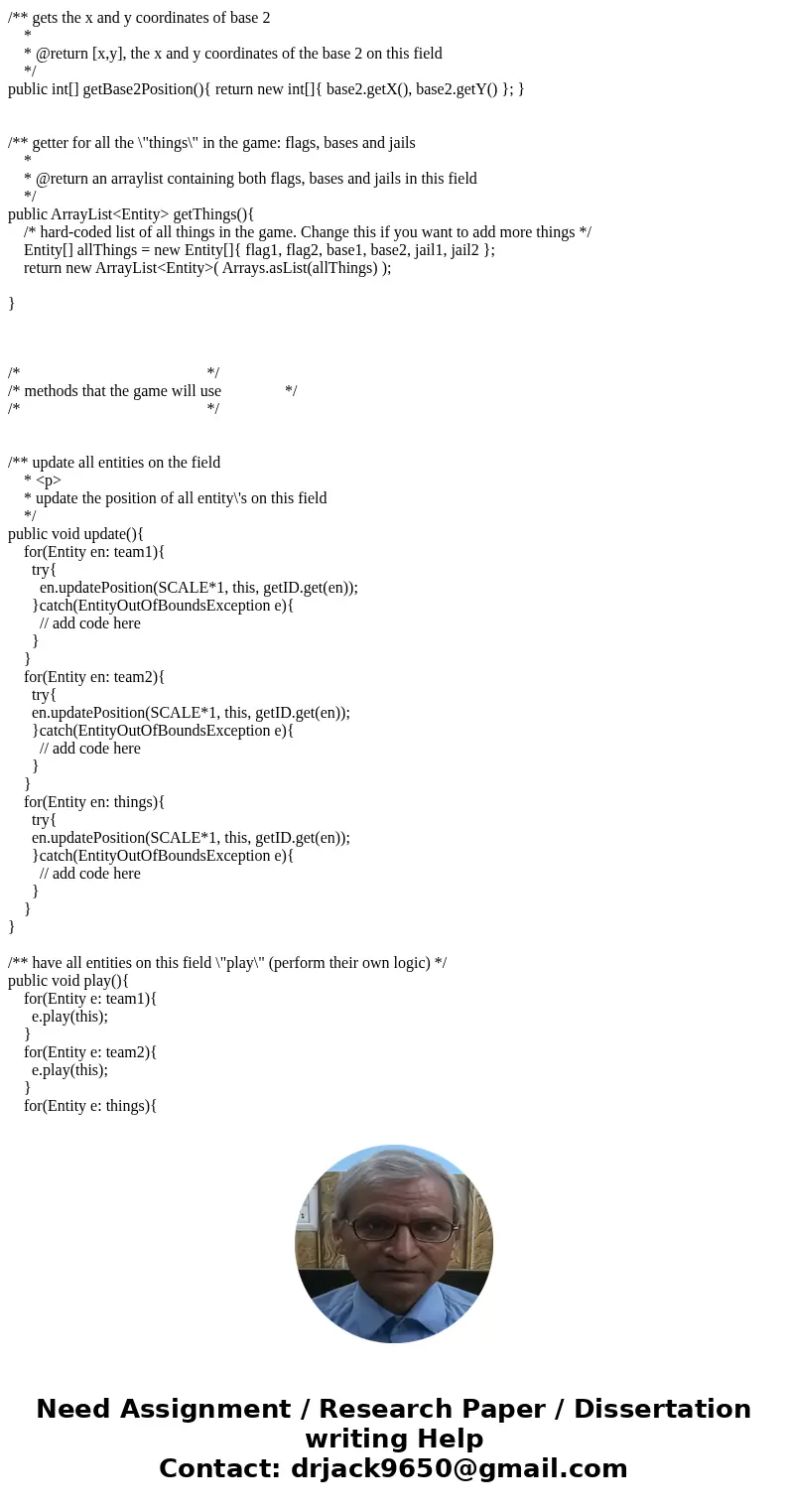

/** gets the x and y coordinates of base 2
 *
 * @return [x,y], the x and y coordinates of the base 2 on this field
 */
public int[] getBase2Position(){ return new int[]{ base2.getX(), base2.getY() }; }

/** getter for all the \"things\" in the game: flags, bases and jails
 *
 * @return an arraylist containing both flags, bases and jails in this field
 */
public ArrayList<Entity> getThings(){
 /* hard-coded list of all things in the game. Change this if you want to add more things */
 Entity[] allThings = new Entity[]{ flag1, flag2, base1, base2, jail1, jail2 };
 return new ArrayList<Entity>( Arrays.asList(allThings) );

}

/* */
/* methods that the game will use */
/* */

/** update all entities on the field
 *
 * update the position of all entity\'s on this field
 */
public void update(){
 for(Entity en: team1){
 try{
 en.updatePosition(SCALE*1, this, getID.get(en));
 }catch(EntityOutOfBoundsException e){
 // add code here
 }
 }
 for(Entity en: team2){
 try{
 en.updatePosition(SCALE*1, this, getID.get(en));
 }catch(EntityOutOfBoundsException e){
 // add code here
 }
 }
 for(Entity en: things){
 try{
 en.updatePosition(SCALE*1, this, getID.get(en));
 }catch(EntityOutOfBoundsException e){
 // add code here
 }
 }
}

/** have all entities on this field \"play\" (perform their own logic) */
public void play(){
 for(Entity e: team1){
 e.play(this);
 }
 for(Entity e: team2){
 e.play(this);
 }
 for(Entity e: things){
 e.play(this);
 }
}

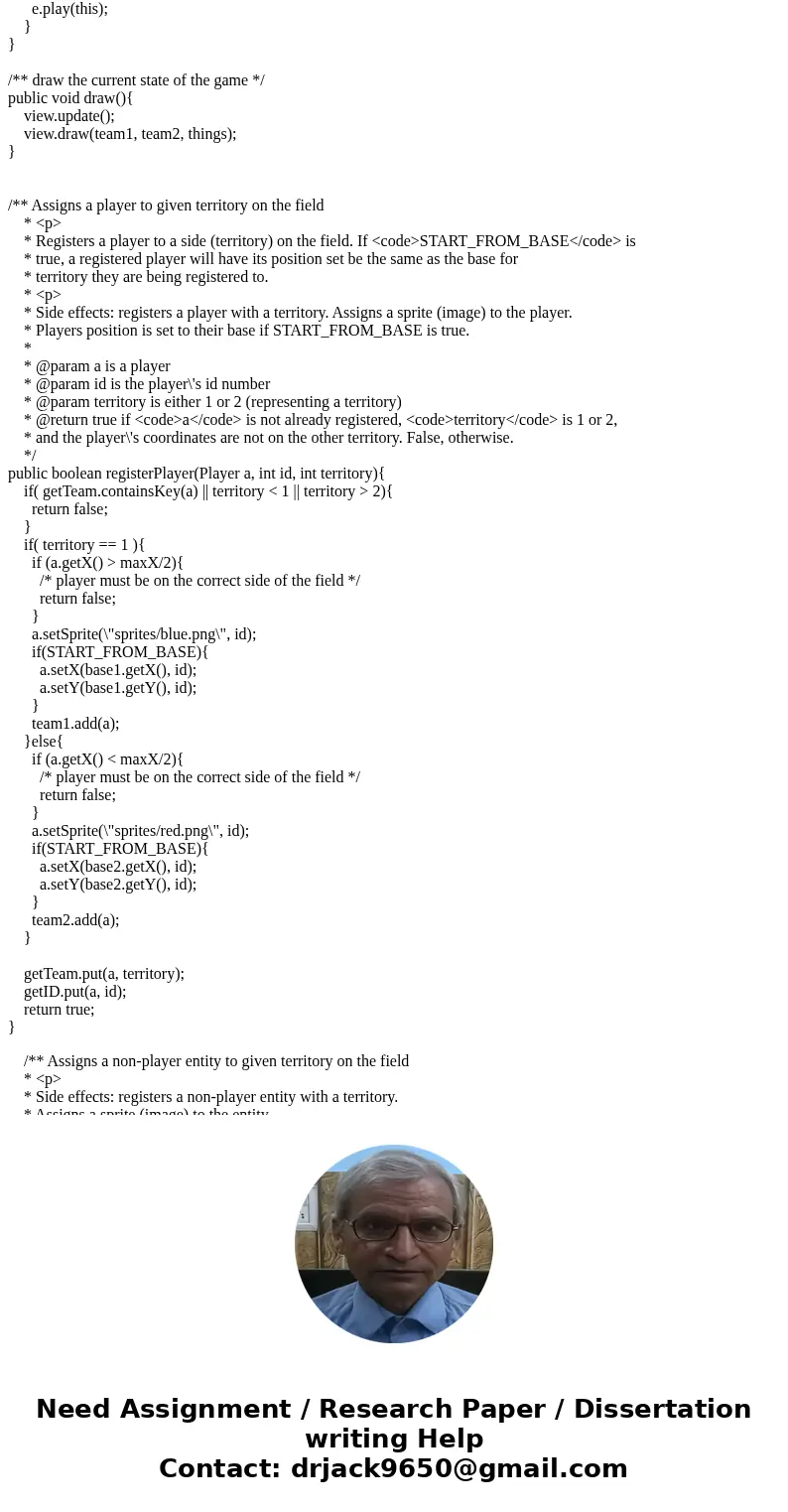

/** draw the current state of the game */
public void draw(){
 view.update();
 view.draw(team1, team2, things);
}


/** Assigns a player to given territory on the field
 *
 * Registers a player to a side (territory) on the field. If <code>START_FROM_BASE</code> is
 * true, a registered player will have its position set be the same as the base for
 * territory they are being registered to.
 *
 * Side effects: registers a player with a territory. Assigns a sprite (image) to the player.
 * Players position is set to their base if START_FROM_BASE is true.
 *
 * @param a is a player
 * @param id is the player\'s id number
 * @param territory is either 1 or 2 (representing a territory)
 * @return true if <code>a</code> is not already registered, <code>territory</code> is 1 or 2,
 * and the player\'s coordinates are not on the other territory. False, otherwise.
 */
public boolean registerPlayer(Player a, int id, int territory){
 if( getTeam.containsKey(a) || territory < 1 || territory > 2){
 return false;
 }
 if( territory == 1 ){
 if (a.getX() > maxX/2){
 /* player must be on the correct side of the field */
 return false;
 }
 a.setSprite(\"sprites/blue.png\", id);
 if(START_FROM_BASE){
 a.setX(base1.getX(), id);
 a.setY(base1.getY(), id);
 }
 team1.add(a);
 }else{
 if (a.getX() < maxX/2){
 /* player must be on the correct side of the field */
 return false;
 }
 a.setSprite(\"sprites/red.png\", id);
 if(START_FROM_BASE){
 a.setX(base2.getX(), id);
 a.setY(base2.getY(), id);
 }
 team2.add(a);
 }

 getTeam.put(a, territory);
 getID.put(a, id);
 return true;
}

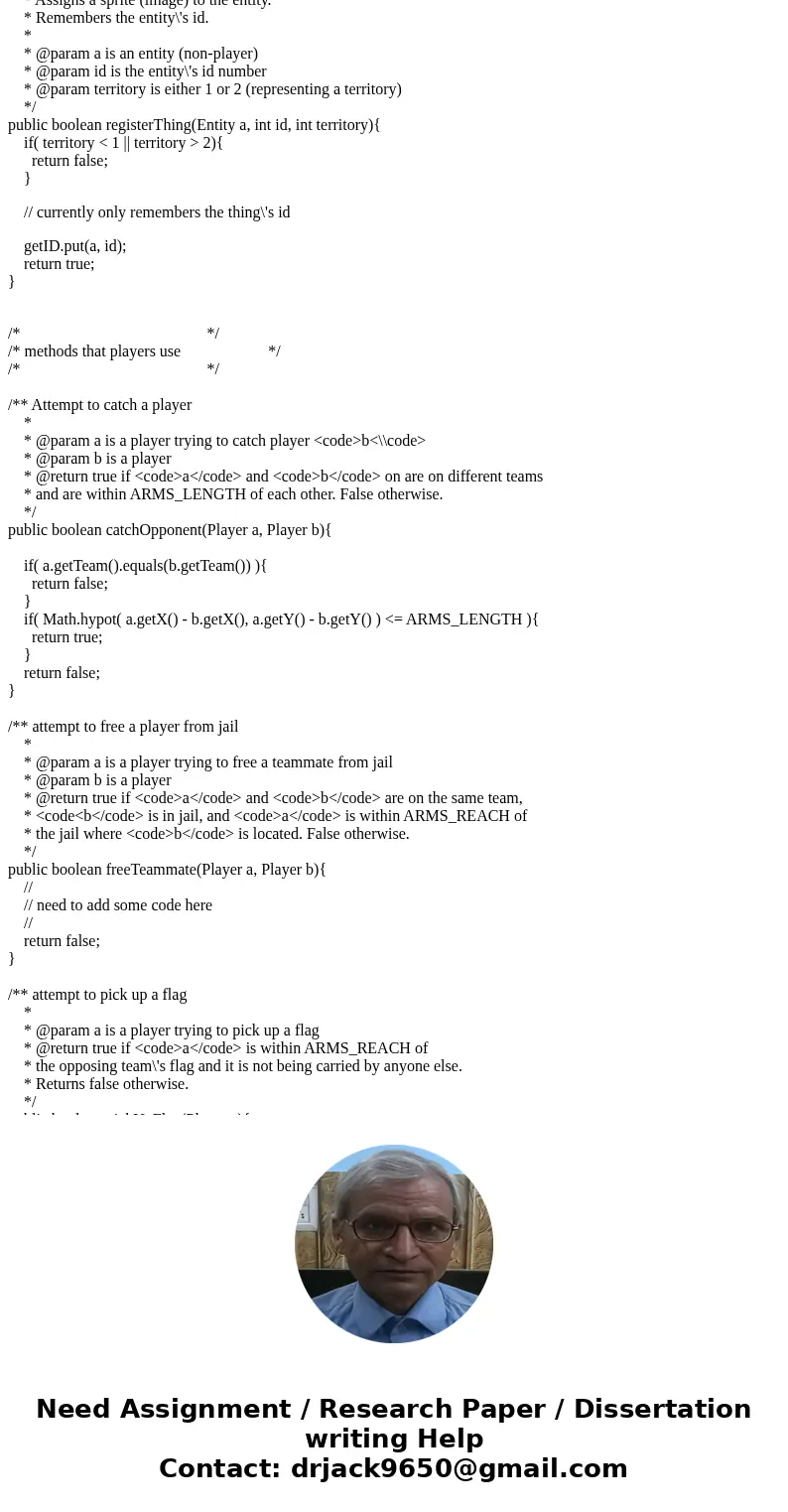

/** Assigns a non-player entity to given territory on the field
 *
 * Side effects: registers a non-player entity with a territory.
 * Assigns a sprite (image) to the entity.
 * Remembers the entity\'s id.
 *
 * @param a is an entity (non-player)
 * @param id is the entity\'s id number
 * @param territory is either 1 or 2 (representing a territory)
 */
public boolean registerThing(Entity a, int id, int territory){
 if( territory < 1 || territory > 2){
 return false;
 }

// currently only remembers the thing\'s id

getID.put(a, id);
return true;
}

/* */
/* methods that players use */
/* */

/** Attempt to catch a player
 *
 * @param a is a player trying to catch player <code>b<\\code>
 * @param b is a player
 * @return true if <code>a</code> and <code>b</code> on are on different teams
 * and are within ARMS_LENGTH of each other. False otherwise.
 */
public boolean catchOpponent(Player a, Player b){

 if( a.getTeam().equals(b.getTeam()) ){
 return false;
 }
 if( Math.hypot( a.getX() - b.getX(), a.getY() - b.getY() ) <= ARMS_LENGTH ){
 return true;
 }
 return false;
}

/** attempt to free a player from jail
 *
 * @param a is a player trying to free a teammate from jail
 * @param b is a player
 * @return true if <code>a</code> and <code>b</code> are on the same team,
 * <code<b</code> is in jail, and <code>a</code> is within ARMS_REACH of
 * the jail where <code>b</code> is located. False otherwise.
 */
public boolean freeTeammate(Player a, Player b){
 //
 // need to add some code here
 //
 return false;
}

/** attempt to pick up a flag
 *
 * @param a is a player trying to pick up a flag
 * @return true if <code>a</code> is within ARMS_REACH of
 * the opposing team\'s flag and it is not being carried by anyone else.
 * Returns false otherwise.
 */

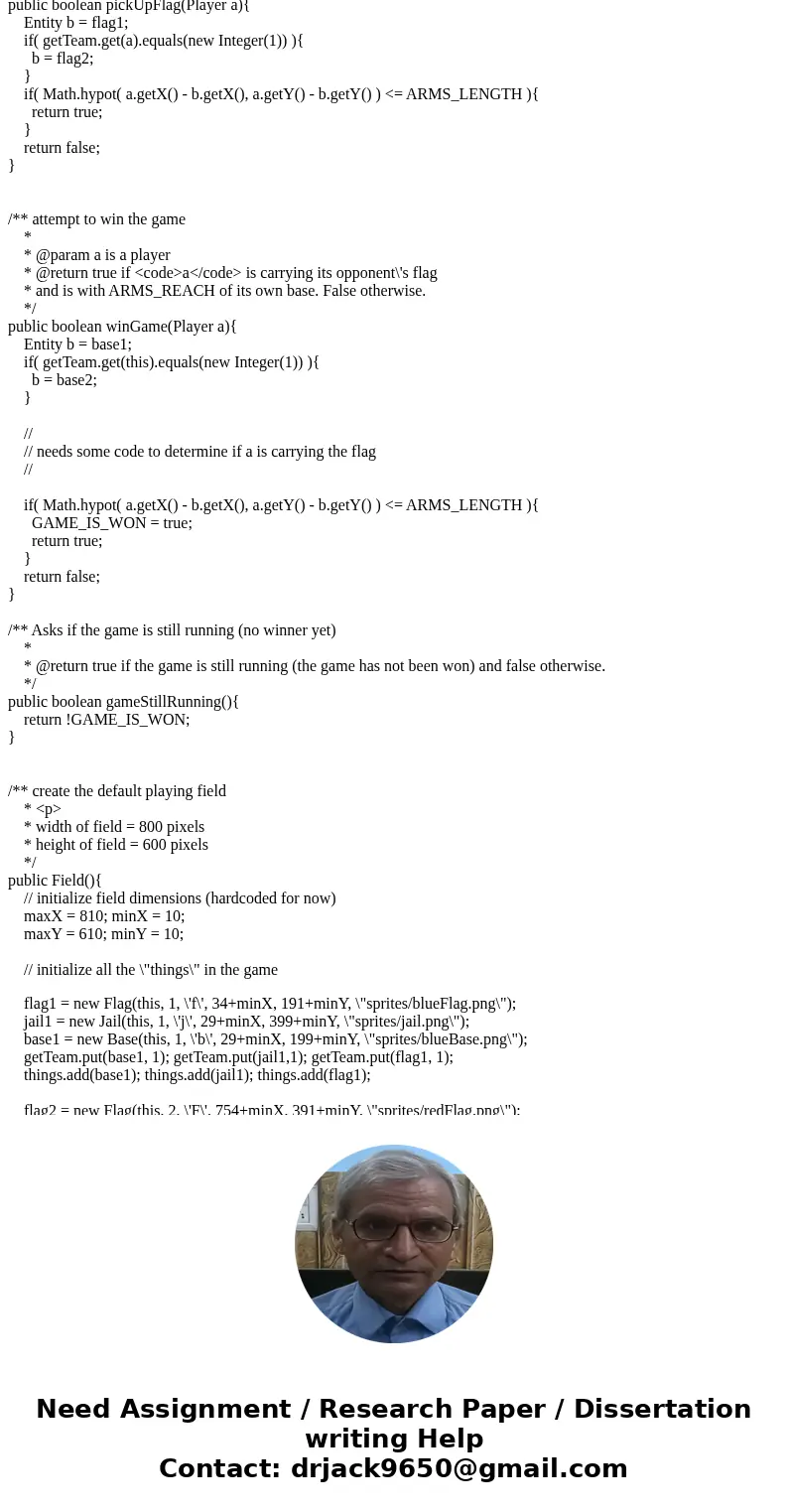

public boolean pickUpFlag(Player a){
 Entity b = flag1;
 if( getTeam.get(a).equals(new Integer(1)) ){
 b = flag2;
 }
 if( Math.hypot( a.getX() - b.getX(), a.getY() - b.getY() ) <= ARMS_LENGTH ){
 return true;
 }
 return false;
}

/** attempt to win the game
 *
 * @param a is a player
 * @return true if <code>a</code> is carrying its opponent\'s flag
 * and is with ARMS_REACH of its own base. False otherwise.
 */
public boolean winGame(Player a){
 Entity b = base1;
 if( getTeam.get(this).equals(new Integer(1)) ){
 b = base2;
 }

 //
 // needs some code to determine if a is carrying the flag
 //

 if( Math.hypot( a.getX() - b.getX(), a.getY() - b.getY() ) <= ARMS_LENGTH ){
 GAME_IS_WON = true;
 return true;
 }
 return false;
}

/** Asks if the game is still running (no winner yet)
 *
 * @return true if the game is still running (the game has not been won) and false otherwise.
 */
public boolean gameStillRunning(){
 return !GAME_IS_WON;
}

/** create the default playing field
 *
 * width of field = 800 pixels
 * height of field = 600 pixels
 */
public Field(){
 // initialize field dimensions (hardcoded for now)
 maxX = 810; minX = 10;
 maxY = 610; minY = 10;

 // initialize all the \"things\" in the game

    flag1 = new Flag(this, 1, \'f\', 34+minX, 191+minY, \"sprites/blueFlag.png\");
    jail1 = new Jail(this, 1, \'j\', 29+minX, 399+minY, \"sprites/jail.png\");
    base1 = new Base(this, 1, \'b\', 29+minX, 199+minY, \"sprites/blueBase.png\");
    getTeam.put(base1, 1); getTeam.put(jail1,1); getTeam.put(flag1, 1);
    things.add(base1); things.add(jail1); things.add(flag1);

    flag2 = new Flag(this, 2, \'F\', 754+minX, 391+minY, \"sprites/redFlag.png\");

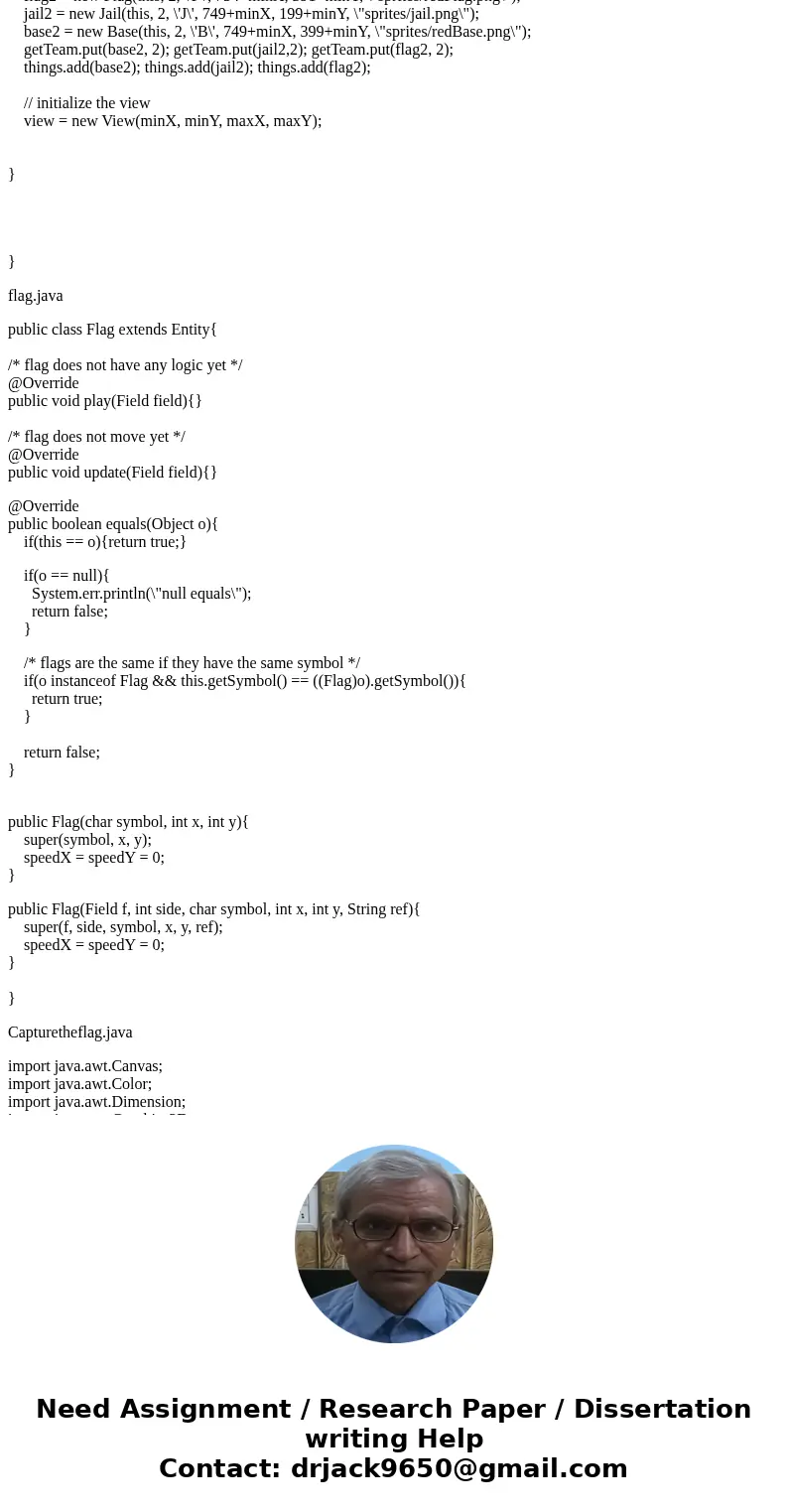

    jail2 = new Jail(this, 2, \'J\', 749+minX, 199+minY, \"sprites/jail.png\");
    base2 = new Base(this, 2, \'B\', 749+minX, 399+minY, \"sprites/redBase.png\");
    getTeam.put(base2, 2); getTeam.put(jail2,2); getTeam.put(flag2, 2);
    things.add(base2); things.add(jail2); things.add(flag2);

    // initialize the view
    view = new View(minX, minY, maxX, maxY);


}

}

flag.java

public class Flag extends Entity{

/* flag does not have any logic yet */
@Override
public void play(Field field){}

/* flag does not move yet */
@Override
public void update(Field field){}

@Override
public boolean equals(Object o){
if(this == o){return true;}

    if(o == null){
      System.err.println(\"null equals\");
      return false;
    }

    /* flags are the same if they have the same symbol */
    if(o instanceof Flag && this.getSymbol() == ((Flag)o).getSymbol()){
      return true;
    }

    return false;
}

public Flag(char symbol, int x, int y){
super(symbol, x, y);
speedX = speedY = 0;
}

public Flag(Field f, int side, char symbol, int x, int y, String ref){
super(f, side, symbol, x, y, ref);
speedX = speedY = 0;
}

}

Capturetheflag.java

import java.awt.Canvas;
import java.awt.Color;
import java.awt.Dimension;

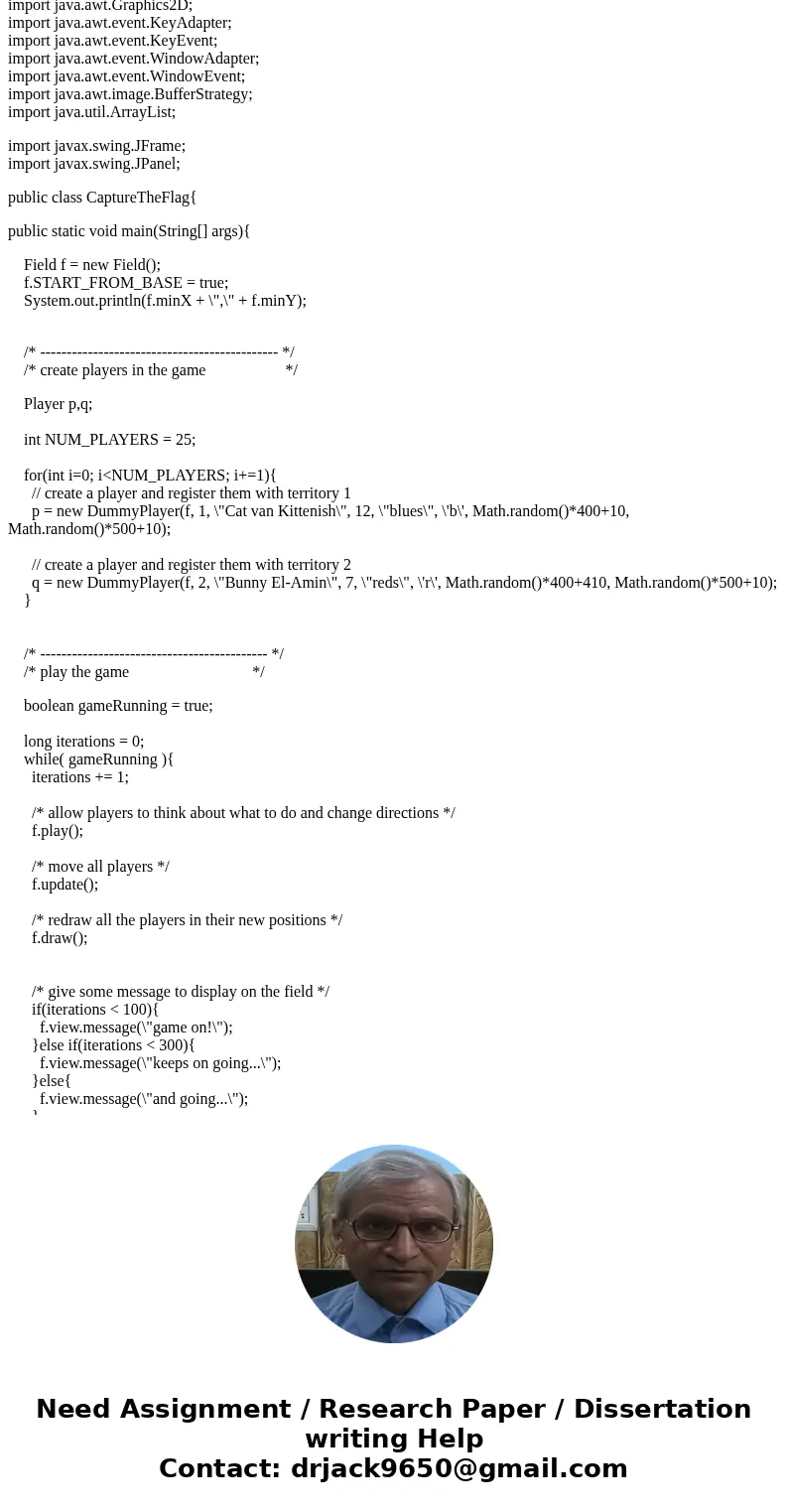

import java.awt.Graphics2D;
import java.awt.event.KeyAdapter;
import java.awt.event.KeyEvent;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
import java.awt.image.BufferStrategy;
import java.util.ArrayList;

import javax.swing.JFrame;
import javax.swing.JPanel;

public class CaptureTheFlag{

public static void main(String[] args){

    Field f = new Field();
    f.START_FROM_BASE = true;
    System.out.println(f.minX + \",\" + f.minY);

/* --------------------------------------------- */
/* create players in the game */

Player p,q;

 int NUM_PLAYERS = 25;

 for(int i=0; i<NUM_PLAYERS; i+=1){
 // create a player and register them with territory 1
 p = new DummyPlayer(f, 1, \"Cat van Kittenish\", 12, \"blues\", \'b\', Math.random()*400+10, Math.random()*500+10);

 // create a player and register them with territory 2
 q = new DummyPlayer(f, 2, \"Bunny El-Amin\", 7, \"reds\", \'r\', Math.random()*400+410, Math.random()*500+10);
 }


 /* ------------------------------------------- */
 /* play the game */

boolean gameRunning = true;

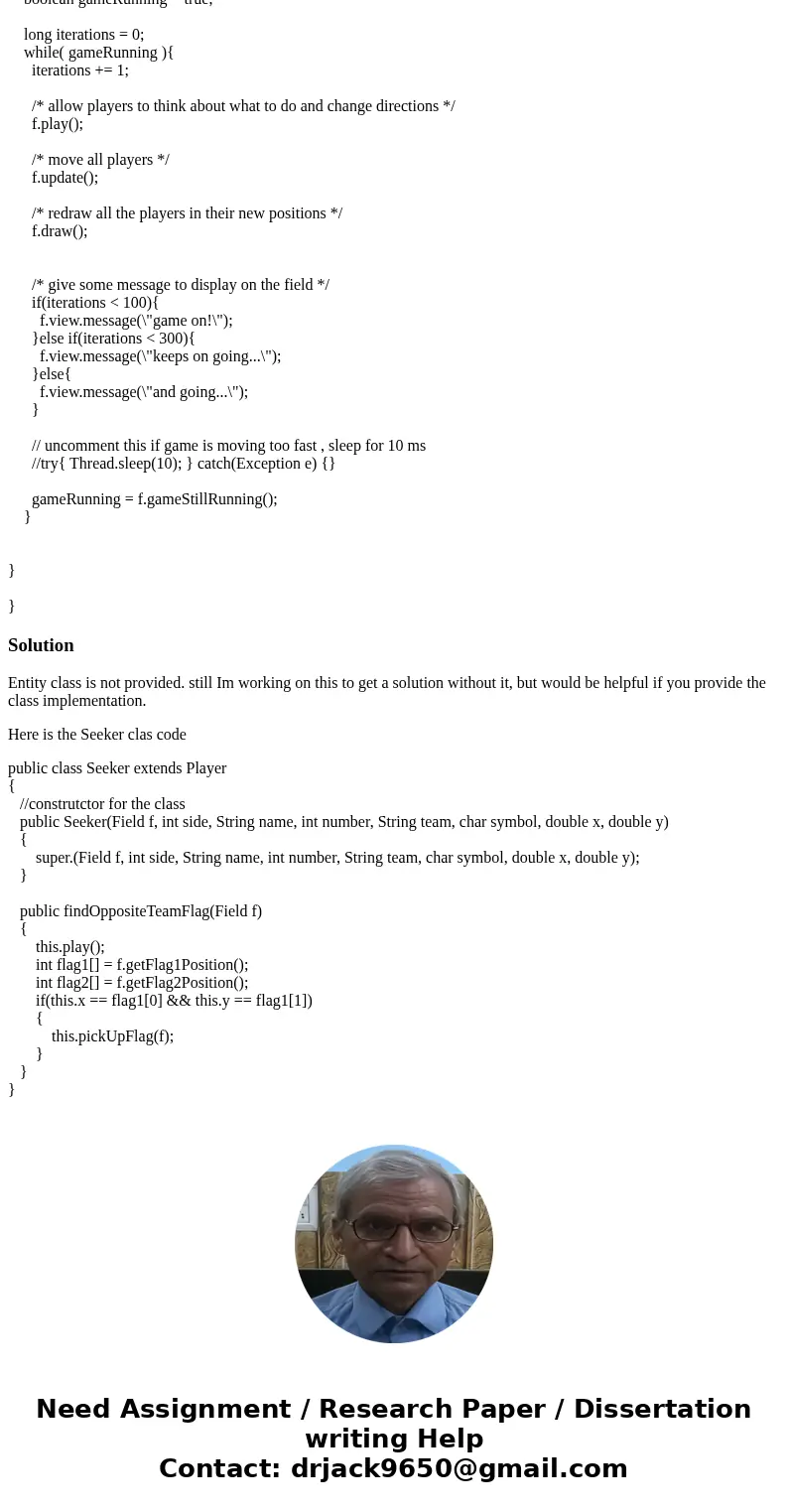

 long iterations = 0;
 while( gameRunning ){
 iterations += 1;

 /* allow players to think about what to do and change directions */
 f.play();

 /* move all players */
 f.update();

 /* redraw all the players in their new positions */
 f.draw();


 /* give some message to display on the field */
 if(iterations < 100){
 f.view.message(\"game on!\");
 }else if(iterations < 300){
 f.view.message(\"keeps on going...\");
 }else{
 f.view.message(\"and going...\");
 }

 // uncomment this if game is moving too fast , sleep for 10 ms
 //try{ Thread.sleep(10); } catch(Exception e) {}

 gameRunning = f.gameStillRunning();
 }


}

}

Entity class is not provided. still Im working on this to get a solution without it, but would be helpful if you provide the class implementation.

Here is the Seeker clas code

public class Seeker extends Player
{
   //construtctor for the class
   public Seeker(Field f, int side, String name, int number, String team, char symbol, double x, double y)
   {
       super.(Field f, int side, String name, int number, String team, char symbol, double x, double y);
   }

   public findOppositeTeamFlag(Field f)
   {
       this.play();
       int flag1[] = f.getFlag1Position();
       int flag2[] = f.getFlag2Position();
       if(this.x == flag1[0] && this.y == flag1[1])
       {
           this.pickUpFlag(f);
       }
   }
}

Questionplayer fieldflag and capturetheflagjava codes are gi

Solution

Get Help Now

Submit a Take Down Notice
