THE POSITIONAL TOLERANCE BELOW IS ON A phi1250003 HOLE SHOW

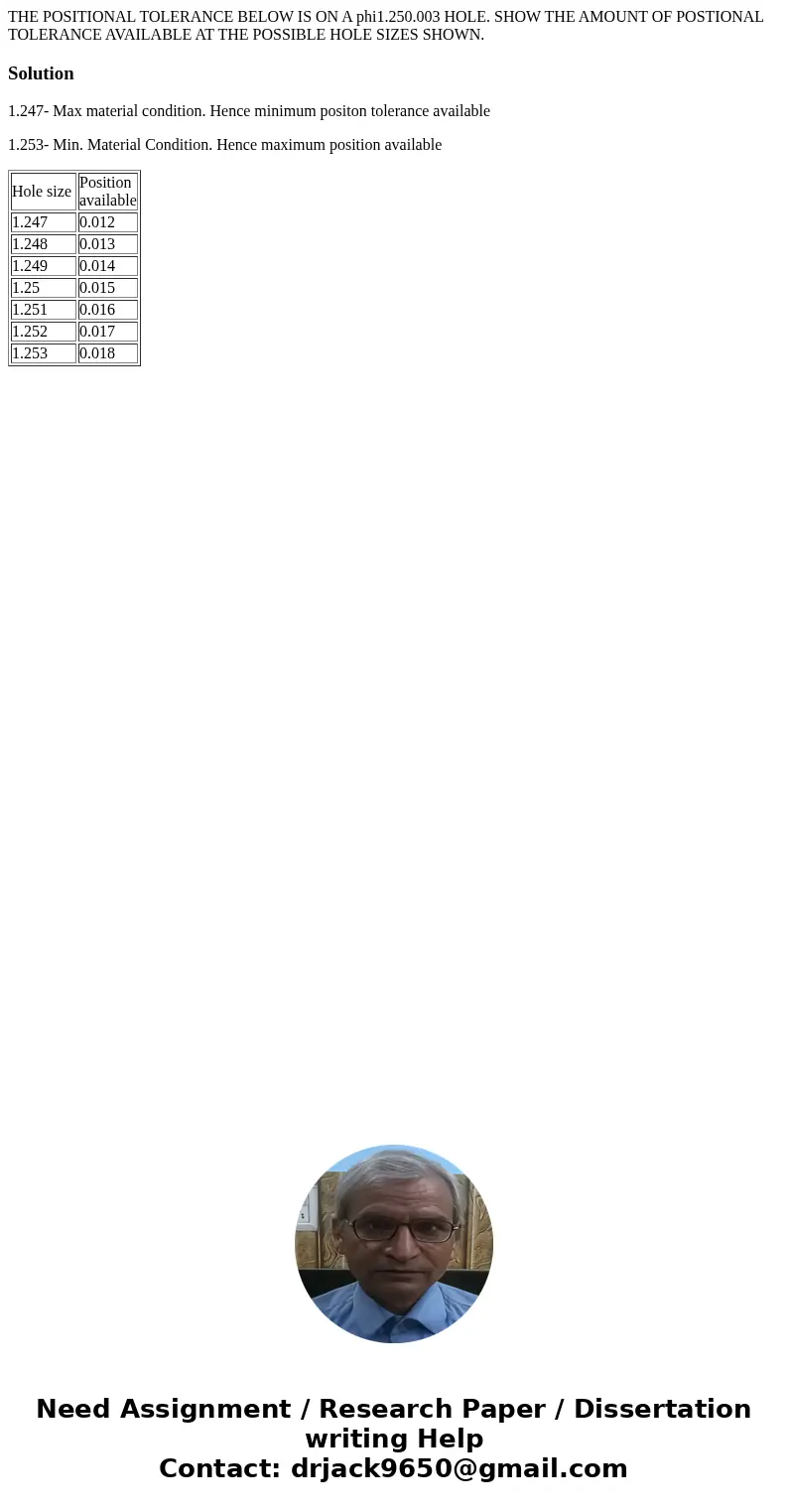

THE POSITIONAL TOLERANCE BELOW IS ON A phi1.250.003 HOLE. SHOW THE AMOUNT OF POSTIONAL TOLERANCE AVAILABLE AT THE POSSIBLE HOLE SIZES SHOWN.

Solution

1.247- Max material condition. Hence minimum positon tolerance available

1.253- Min. Material Condition. Hence maximum position available

Hole size	Position available
1.247	0.012
1.248	0.013
1.249	0.014
1.25	0.015
1.251	0.016
1.252	0.017
1.253	0.018
