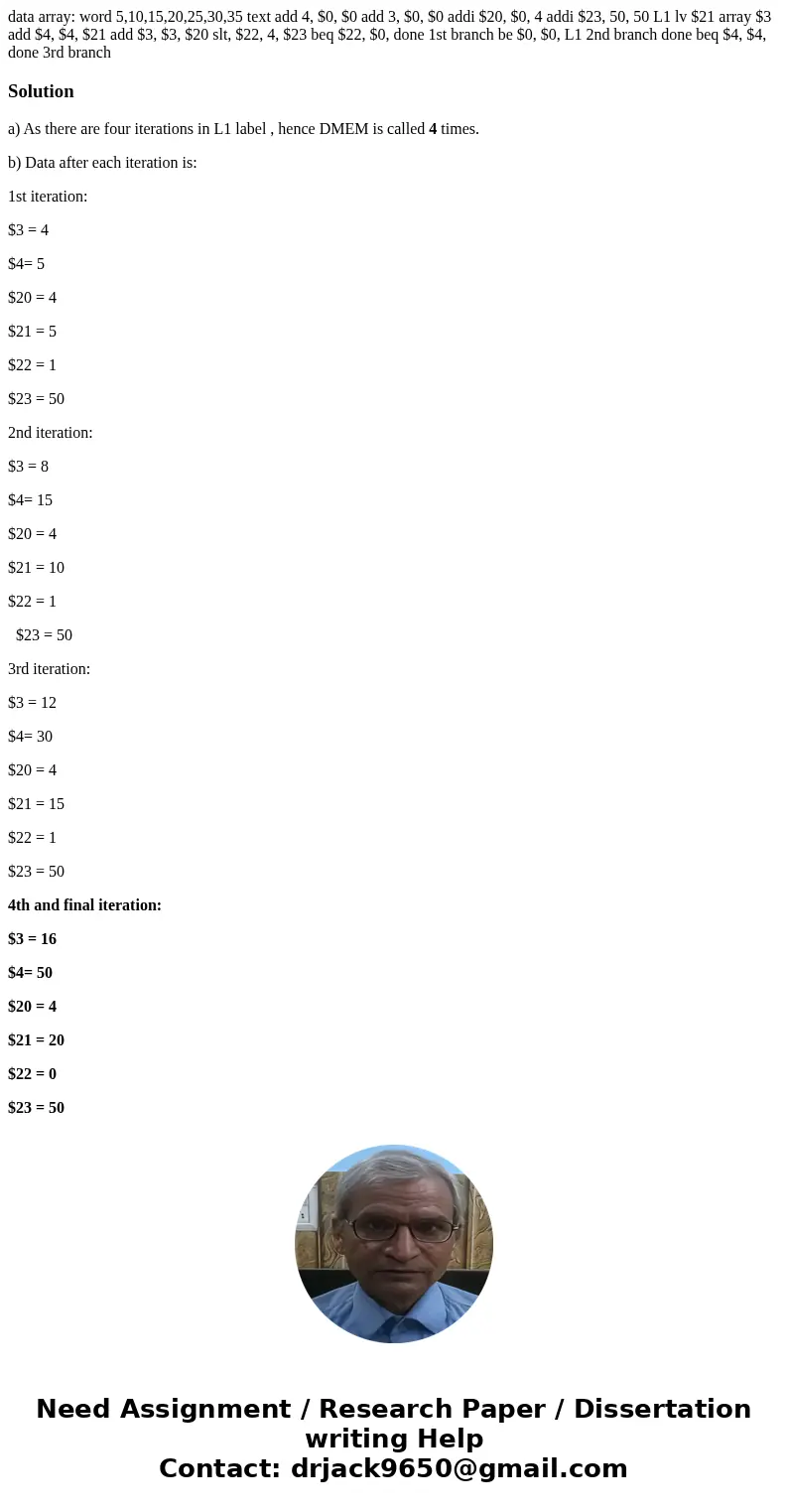

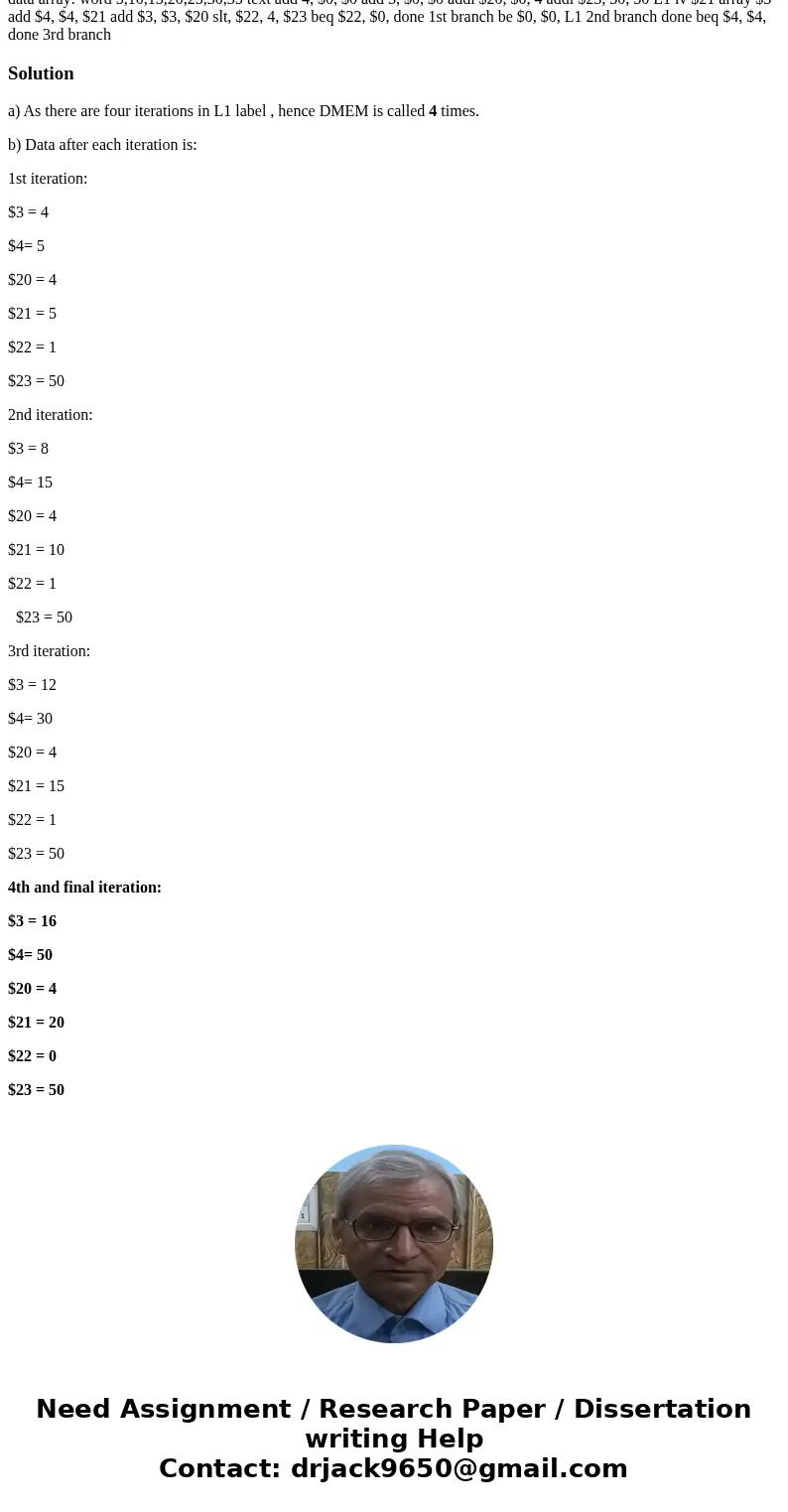

data array word 5101520253035 text add 4 0 0 add 3 0 0 addi

data array: word 5,10,15,20,25,30,35 text add 4, $0, $0 add 3, $0, $0 addi $20, $0, 4 addi $23, 50, 50 L1 lv $21 array $3 add $4, $4, $21 add $3, $3, $20 slt, $22, 4, $23 beq $22, $0, done 1st branch be $0, $0, L1 2nd branch done beq $4, $4, done 3rd branch

Solution

a) As there are four iterations in L1 label , hence DMEM is called 4 times.

b) Data after each iteration is:

1st iteration:

$3 = 4

$4= 5

$20 = 4

$21 = 5

$22 = 1

$23 = 50

2nd iteration:

$3 = 8

$4= 15

$20 = 4

$21 = 10

$22 = 1

  $23 = 50

3rd iteration:

$3 = 12

$4= 30

$20 = 4

$21 = 15

$22 = 1

$23 = 50

4th and final iteration:

$3 = 16

$4= 50

$20 = 4

$21 = 20

$22 = 0

$23 = 50
