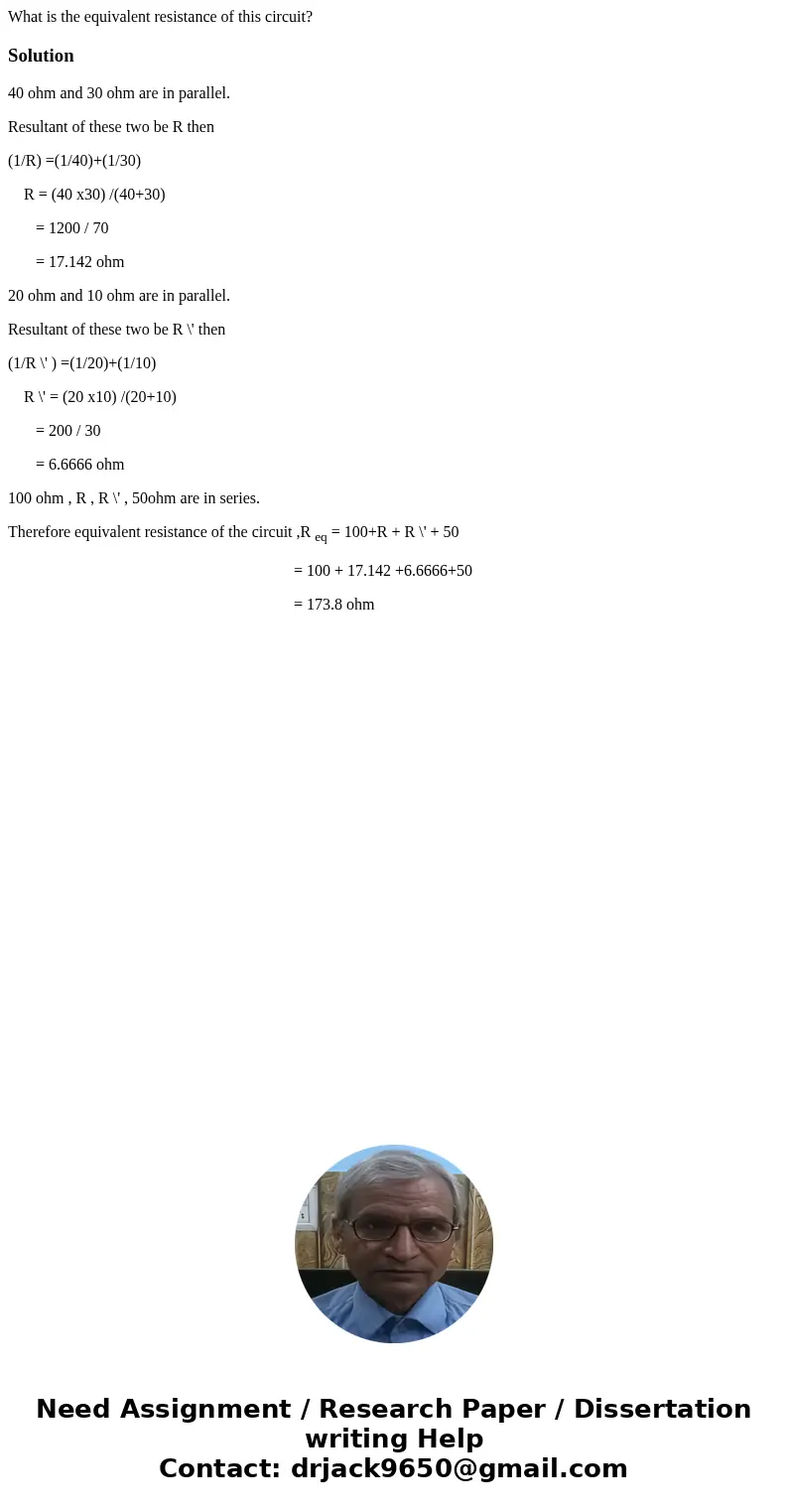

What is the equivalent resistance of this circuit?

Solution

40 ohm and 30 ohm are in parallel.

Resultant of these two be R then

(1/R) =(1/40)+(1/30)

    R = (40 x30) /(40+30)

       = 1200 / 70

       = 17.142 ohm

20 ohm and 10 ohm are in parallel.

Resultant of these two be R \' then

(1/R \' ) =(1/20)+(1/10)

    R \' = (20 x10) /(20+10)

       = 200 / 30

       = 6.6666 ohm

100 ohm , R , R \' , 50ohm are in series.

Therefore equivalent resistance of the circuit ,R _eq = 100+R + R \' + 50

                                                                        = 100 + 17.142 +6.6666+50

                                                                        = 173.8 ohm
