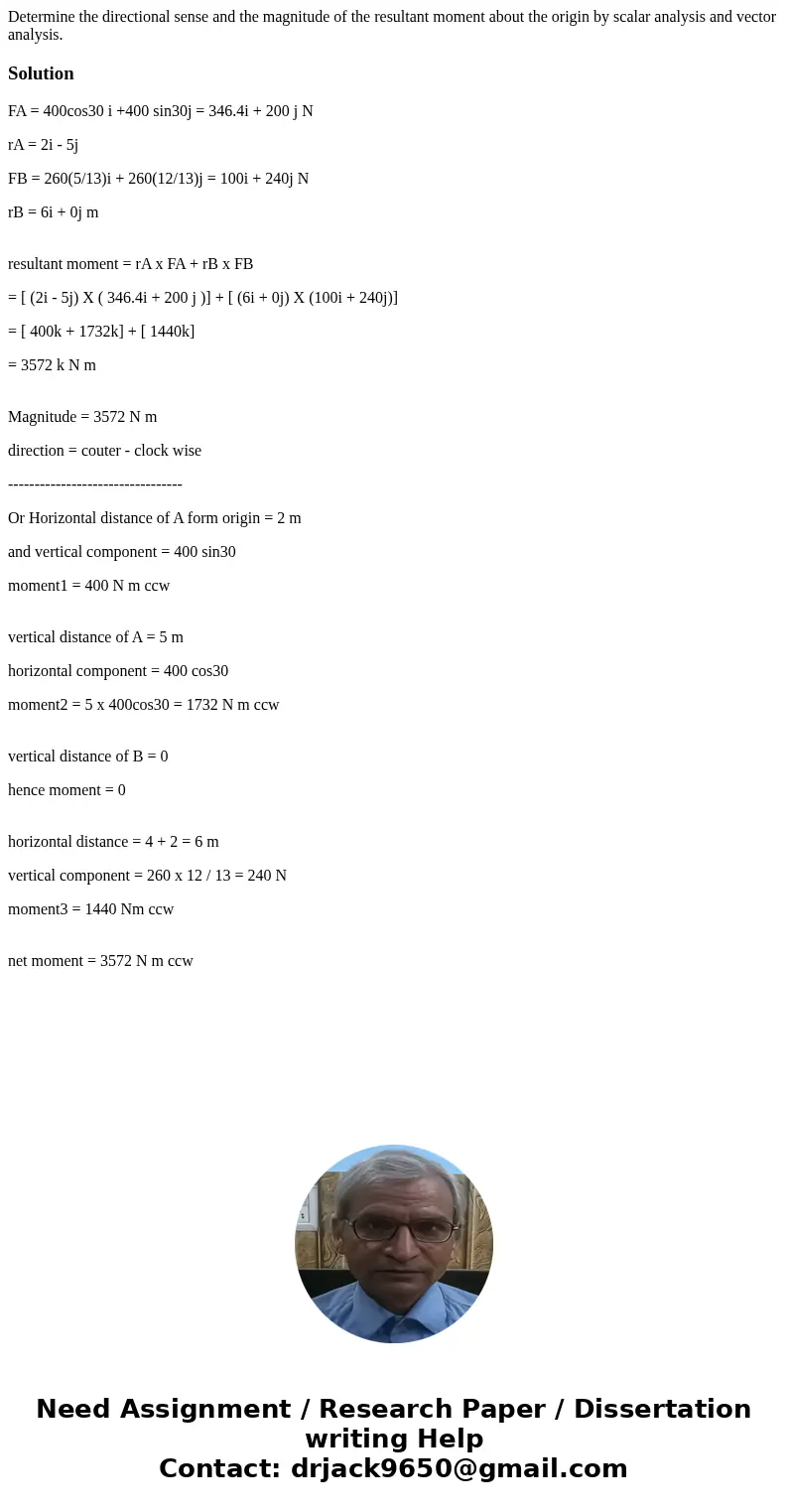

Determine the directional sense and the magnitude of the resultant moment about the origin by scalar analysis and vector analysis.

FA = 400cos30 i +400 sin30j = 346.4i + 200 j N

rA = 2i - 5j

FB = 260(5/13)i + 260(12/13)j = 100i + 240j N

rB = 6i + 0j m

resultant moment = rA x FA + rB x FB

= [ (2i - 5j) X ( 346.4i + 200 j )] + [ (6i + 0j) X (100i + 240j)]

= [ 400k + 1732k] + [ 1440k]

= 3572 k N m

Magnitude = 3572 N m

direction = couter - clock wise

---------------------------------

Or Horizontal distance of A form origin = 2 m

and vertical component = 400 sin30

moment1 = 400 N m ccw

vertical distance of A = 5 m

horizontal component = 400 cos30

moment2 = 5 x 400cos30 = 1732 N m ccw

vertical distance of B = 0

hence moment = 0

horizontal distance = 4 + 2 = 6 m

vertical component = 260 x 12 / 13 = 240 N

moment3 = 1440 Nm ccw

net moment = 3572 N m ccw
