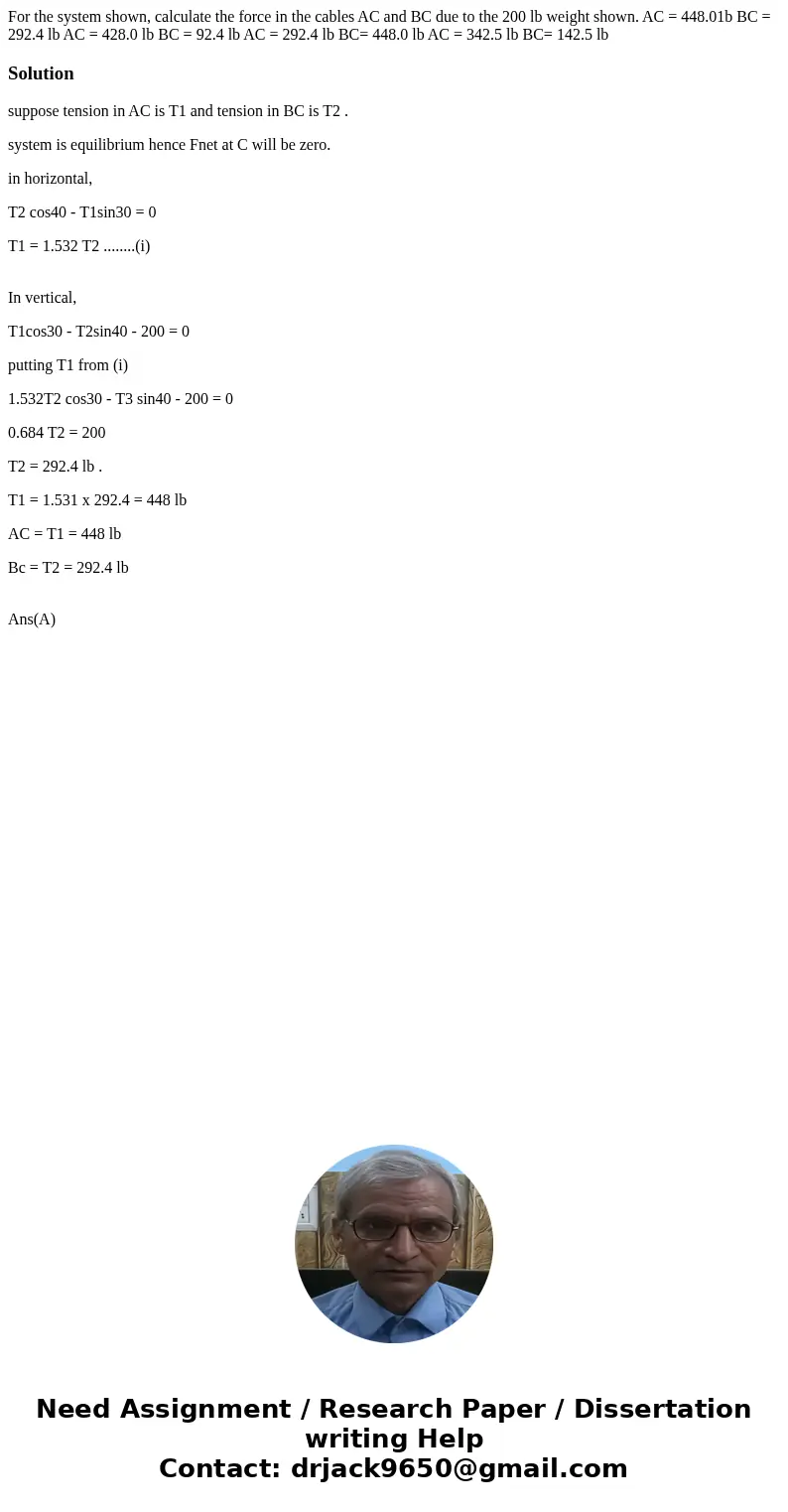

For the system shown, calculate the force in the cables AC and BC due to the 200 lb weight shown. AC = 448.01b BC = 292.4 lb AC = 428.0 lb BC = 92.4 lb AC = 292.4 lb BC= 448.0 lb AC = 342.5 lb BC= 142.5 lb

Solution

suppose tension in AC is T1 and tension in BC is T2 .

system is equilibrium hence Fnet at C will be zero.

in horizontal,

T2 cos40 - T1sin30 = 0

T1 = 1.532 T2 ........(i)

In vertical,

T1cos30 - T2sin40 - 200 = 0

putting T1 from (i)

1.532T2 cos30 - T3 sin40 - 200 = 0

0.684 T2 = 200

T2 = 292.4 lb .

T1 = 1.531 x 292.4 = 448 lb

AC = T1 = 448 lb

Bc = T2 = 292.4 lb

Ans(A)
