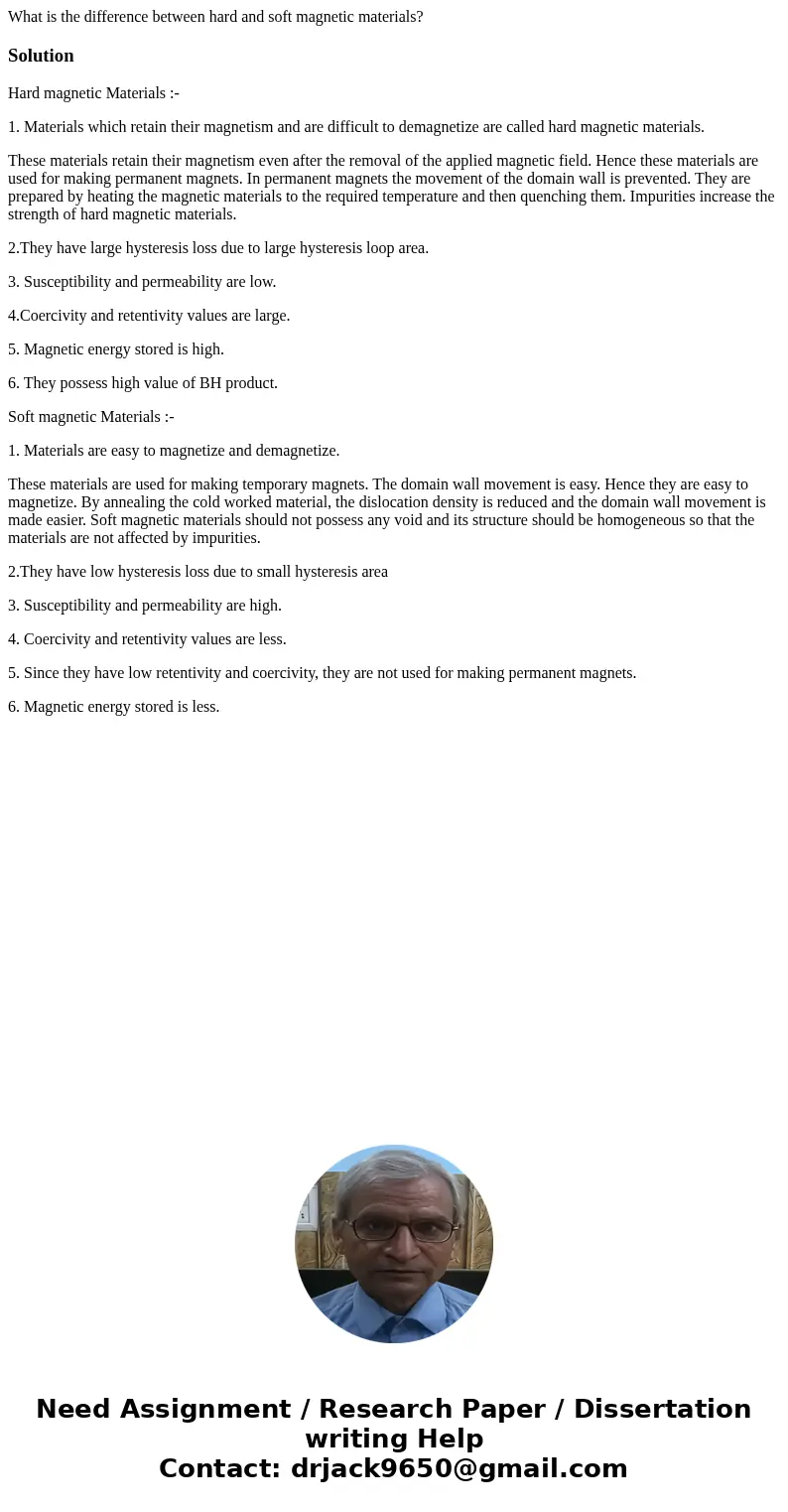

What is the difference between hard and soft magnetic materials?

Solution

Hard magnetic Materials :-

1. Materials which retain their magnetism and are difficult to demagnetize are called hard magnetic materials.

These materials retain their magnetism even after the removal of the applied magnetic field. Hence these materials are used for making permanent magnets. In permanent magnets the movement of the domain wall is prevented. They are prepared by heating the magnetic materials to the required temperature and then quenching them. Impurities increase the strength of hard magnetic materials.

2.They have large hysteresis loss due to large hysteresis loop area.

3. Susceptibility and permeability are low.

4.Coercivity and retentivity values are large.

5. Magnetic energy stored is high.

6. They possess high value of BH product.

Soft magnetic Materials :-

1. Materials are easy to magnetize and demagnetize.

These materials are used for making temporary magnets. The domain wall movement is easy. Hence they are easy to magnetize. By annealing the cold worked material, the dislocation density is reduced and the domain wall movement is made easier. Soft magnetic materials should not possess any void and its structure should be homogeneous so that the materials are not affected by impurities.

2.They have low hysteresis loss due to small hysteresis area

3. Susceptibility and permeability are high.

4. Coercivity and retentivity values are less.

5. Since they have low retentivity and coercivity, they are not used for making permanent magnets.

6. Magnetic energy stored is less.
