MOD2 RAM Random Access Memory can be written to and read fro

MOD2 RAM (Random Access Memory, can be written to and read from) ROM (Read Only Memory) Full Adder n-bit Adder module MOD2(input [n -1:0] X, input [n -1: 0] Y, output [n -1:0] Sum, output Co, output 0F}; parameter n = 8; wire [n:0] Ci; assign Ci [0] = 1\' b0; genvar i; generate for (i = 0; i

Solution

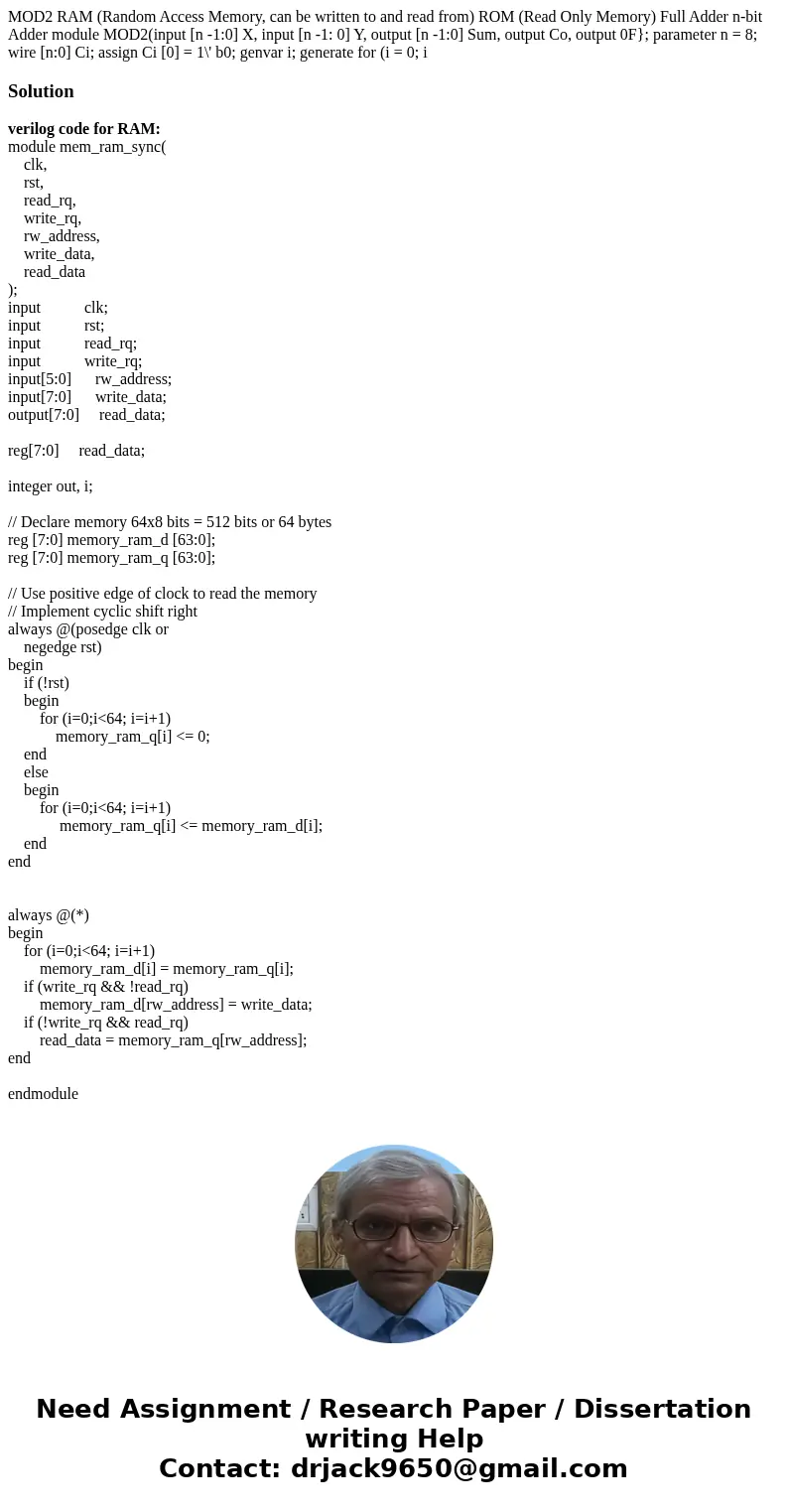

verilog code for RAM:
module mem_ram_sync(
    clk,
    rst,
    read_rq,
    write_rq,
    rw_address,
    write_data,
    read_data
);
input           clk;
input           rst;
input           read_rq;
input           write_rq;
input[5:0]      rw_address;
input[7:0]      write_data;
output[7:0]     read_data;

reg[7:0]     read_data;

integer out, i;

// Declare memory 64x8 bits = 512 bits or 64 bytes
reg [7:0] memory_ram_d [63:0];
reg [7:0] memory_ram_q [63:0];

// Use positive edge of clock to read the memory
// Implement cyclic shift right
always @(posedge clk or
    negedge rst)
begin
    if (!rst)
    begin
        for (i=0;i<64; i=i+1)
            memory_ram_q[i] <= 0;
    end
    else
    begin
        for (i=0;i<64; i=i+1)
             memory_ram_q[i] <= memory_ram_d[i];
    end
end


always @(*)
begin
    for (i=0;i<64; i=i+1)
        memory_ram_d[i] = memory_ram_q[i];
    if (write_rq && !read_rq)
        memory_ram_d[rw_address] = write_data;
    if (!write_rq && read_rq)
        read_data = memory_ram_q[rw_address];
end

endmodule

Verilog code for ROM

Verilog code for n-bit adder:

module nBitAdder(f, cOut, a, b, cIn);

  parameter n = 7;

  output reg [n:0] f;

  output reg cOut;

  input [n:0] a;

  input [n:0] b;

  input cIn;

  always @(a, b, cIn)

    {cOut, f} = a + b + cIn;

endmodule

verilog code for Full Adder:
