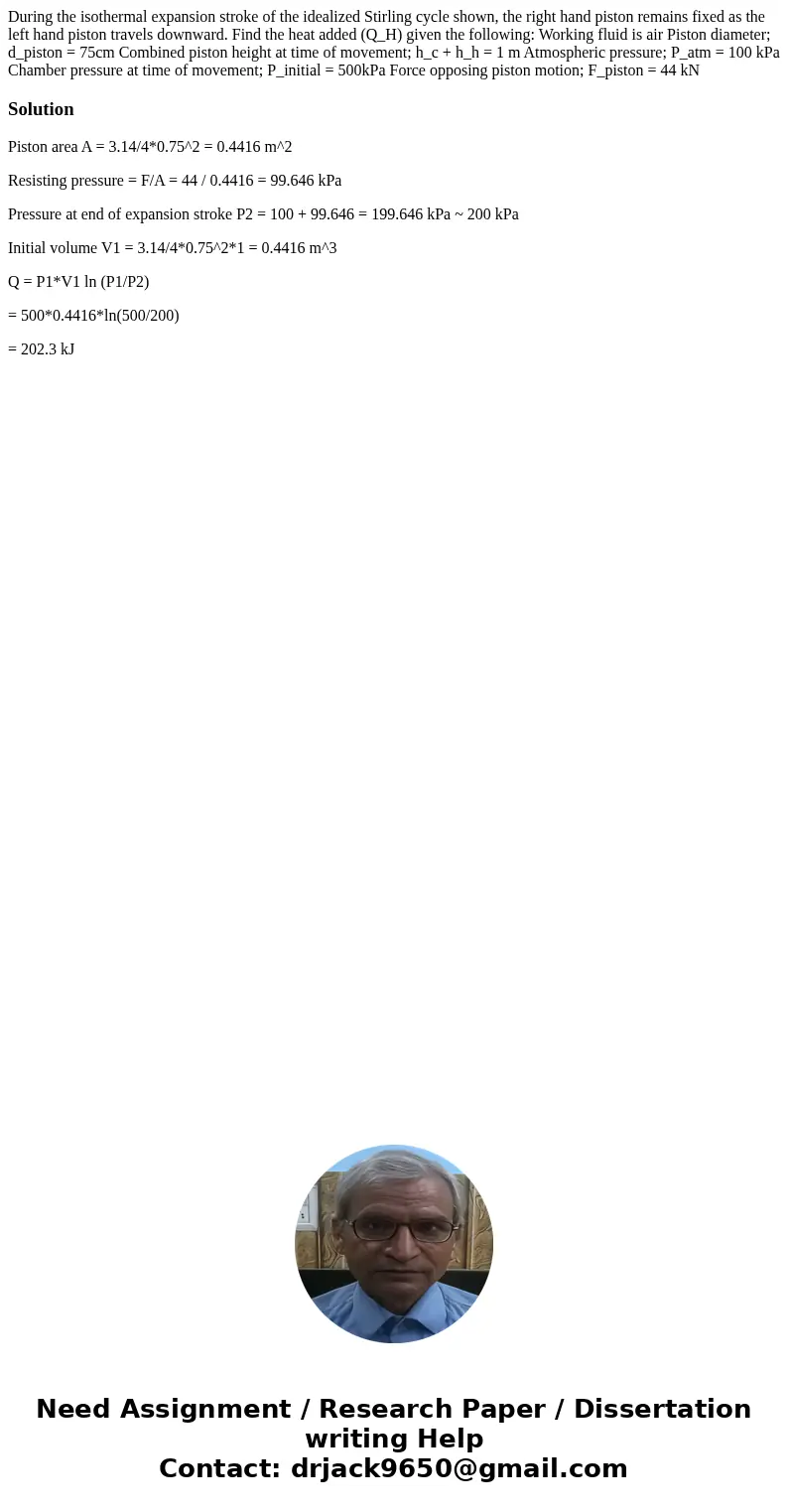

During the isothermal expansion stroke of the idealized Stirling cycle shown, the right hand piston remains fixed as the left hand piston travels downward. Find the heat added (Q_H) given the following: Working fluid is air Piston diameter; d_piston = 75cm Combined piston height at time of movement; h_c + h_h = 1 m Atmospheric pressure; P_atm = 100 kPa Chamber pressure at time of movement; P_initial = 500kPa Force opposing piston motion; F_piston = 44 kN

Solution

Piston area A = 3.14/4*0.75^2 = 0.4416 m^2

Resisting pressure = F/A = 44 / 0.4416 = 99.646 kPa

Pressure at end of expansion stroke P2 = 100 + 99.646 = 199.646 kPa ~ 200 kPa

Initial volume V1 = 3.14/4*0.75^2*1 = 0.4416 m^3

Q = P1*V1 ln (P1/P2)

= 500*0.4416*ln(500/200)

= 202.3 kJ
