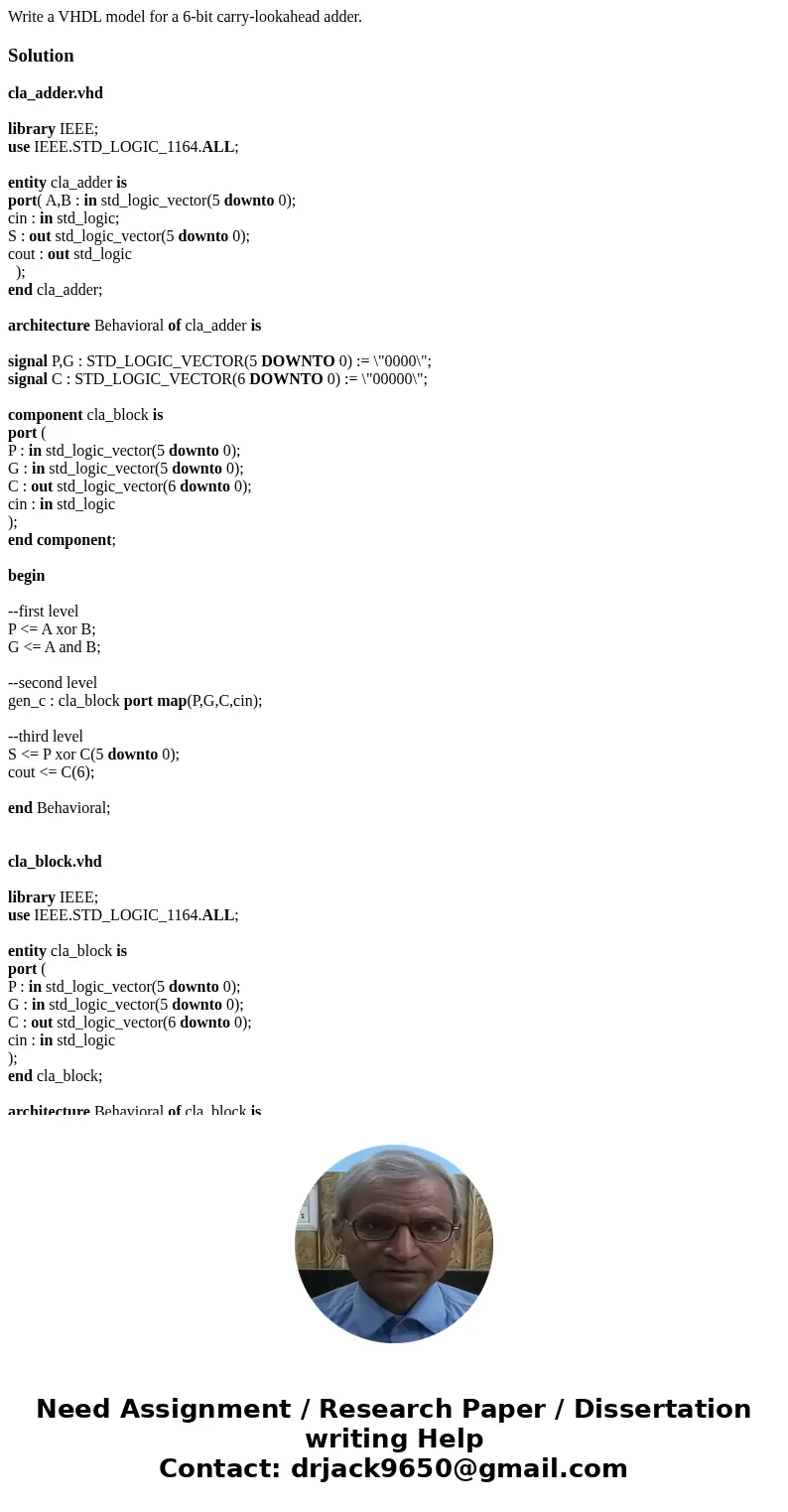

Write a VHDL model for a 6-bit carry-lookahead adder.

Solution

cla_adder.vhd

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;

entity cla_adder is
port( A,B : in std_logic_vector(5 downto 0);
cin : in std_logic;
S : out std_logic_vector(5 downto 0);
cout : out std_logic
  );
end cla_adder;

architecture Behavioral of cla_adder is

signal P,G : STD_LOGIC_VECTOR(5 DOWNTO 0) := \"0000\";
signal C : STD_LOGIC_VECTOR(6 DOWNTO 0) := \"00000\";

component cla_block is
port (
P : in std_logic_vector(5 downto 0);
G : in std_logic_vector(5 downto 0);
C : out std_logic_vector(6 downto 0);
cin : in std_logic
);
end component;

begin

--first level
P <= A xor B;
G <= A and B;

--second level
gen_c : cla_block port map(P,G,C,cin);

--third level
S <= P xor C(5 downto 0);
cout <= C(6);

end Behavioral;


cla_block.vhd

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;

entity cla_block is
port (
P : in std_logic_vector(5 downto 0);
G : in std_logic_vector(5 downto 0);
C : out std_logic_vector(6 downto 0);
cin : in std_logic
);
end cla_block;

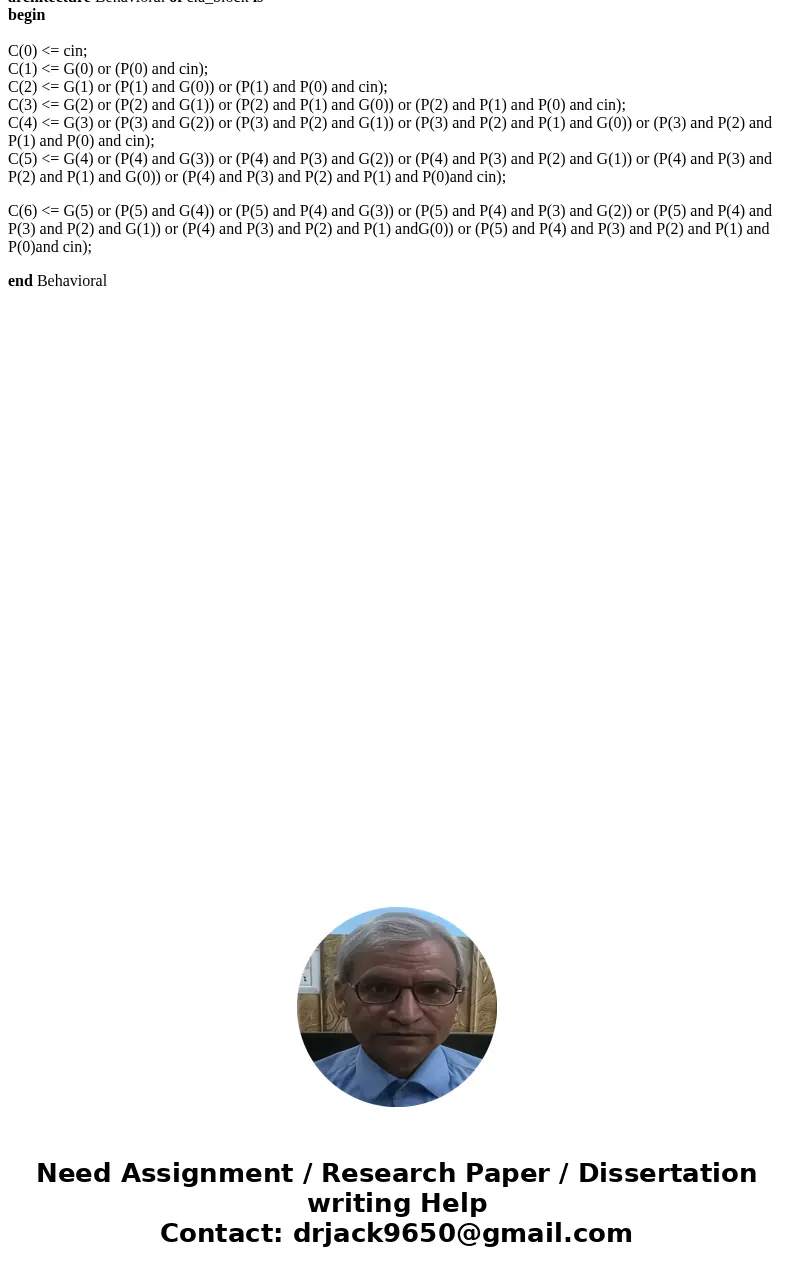

architecture Behavioral of cla_block is
begin

C(0) <= cin;
C(1) <= G(0) or (P(0) and cin);
C(2) <= G(1) or (P(1) and G(0)) or (P(1) and P(0) and cin);
C(3) <= G(2) or (P(2) and G(1)) or (P(2) and P(1) and G(0)) or (P(2) and P(1) and P(0) and cin);
C(4) <= G(3) or (P(3) and G(2)) or (P(3) and P(2) and G(1)) or (P(3) and P(2) and P(1) and G(0)) or (P(3) and P(2) and P(1) and P(0) and cin);
C(5) <= G(4) or (P(4) and G(3)) or (P(4) and P(3) and G(2)) or (P(4) and P(3) and P(2) and G(1)) or (P(4) and P(3) and P(2) and P(1) and G(0)) or (P(4) and P(3) and P(2) and P(1) and P(0)and cin);

C(6) <= G(5) or (P(5) and G(4)) or (P(5) and P(4) and G(3)) or (P(5) and P(4) and P(3) and G(2)) or (P(5) and P(4) and P(3) and P(2) and G(1)) or (P(4) and P(3) and P(2) and P(1) andG(0)) or (P(5) and P(4) and P(3) and P(2) and P(1) and P(0)and cin);

end Behavioral
