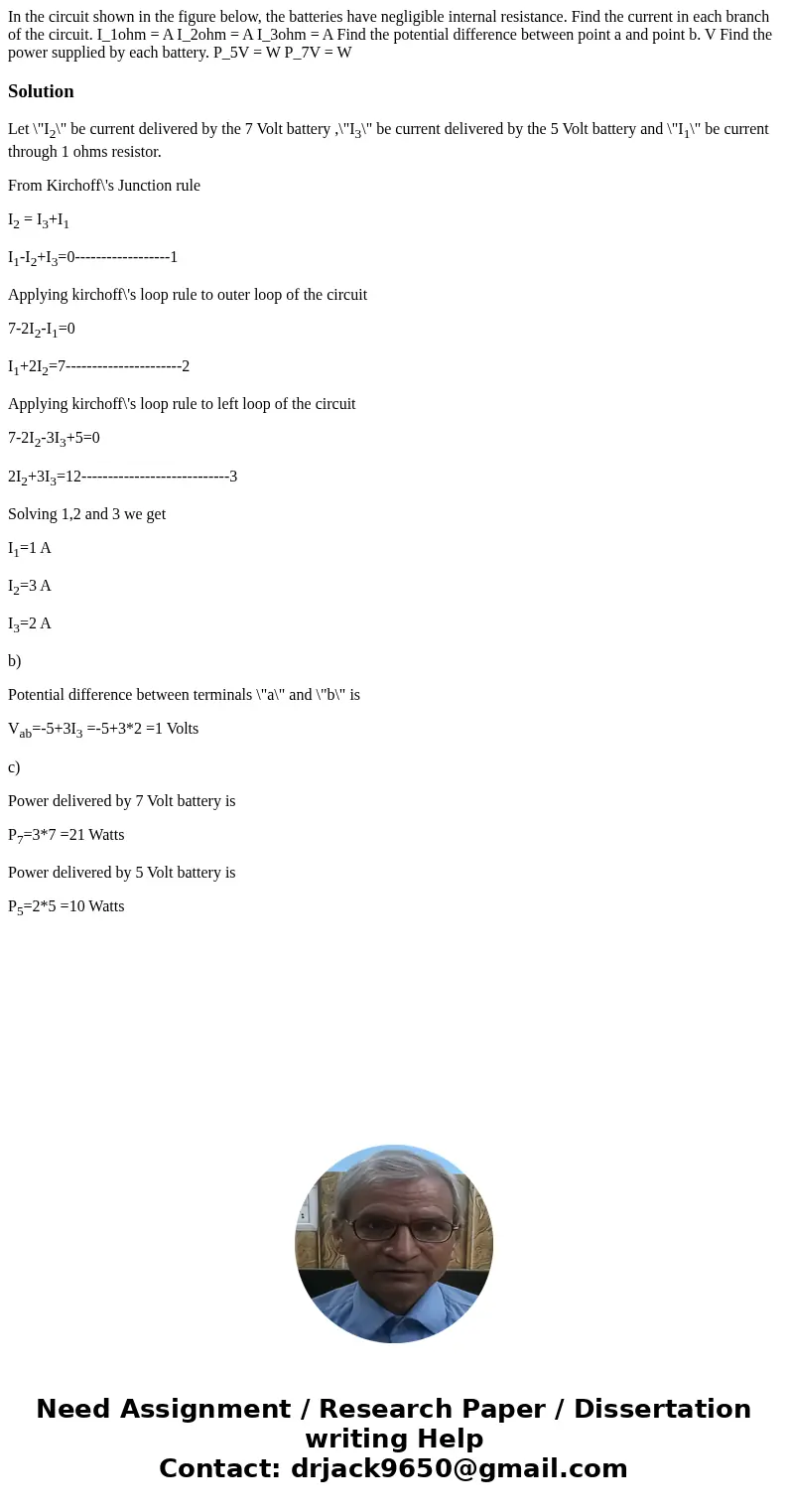

In the circuit shown in the figure below, the batteries have negligible internal resistance. Find the current in each branch of the circuit. I_1ohm = A I_2ohm = A I_3ohm = A Find the potential difference between point a and point b. V Find the power supplied by each battery. P_5V = W P_7V = W

Solution

Let \"I₂\" be current delivered by the 7 Volt battery ,\"I₃\" be current delivered by the 5 Volt battery and \"I₁\" be current through 1 ohms resistor.

From Kirchoff\'s Junction rule

I₂ = I₃+I₁

I₁-I₂+I₃=0------------------1

Applying kirchoff\'s loop rule to outer loop of the circuit

7-2I₂-I₁=0

I₁+2I₂=7----------------------2

Applying kirchoff\'s loop rule to left loop of the circuit

7-2I₂-3I₃+5=0

2I₂+3I₃=12----------------------------3

Solving 1,2 and 3 we get

I₁=1 A

I₂=3 A

I₃=2 A

b)

Potential difference between terminals \"a\" and \"b\" is

V_ab=-5+3I₃ =-5+3*2 =1 Volts

c)

Power delivered by 7 Volt battery is

P₇=3*7 =21 Watts

Power delivered by 5 Volt battery is

P₅=2*5 =10 Watts
