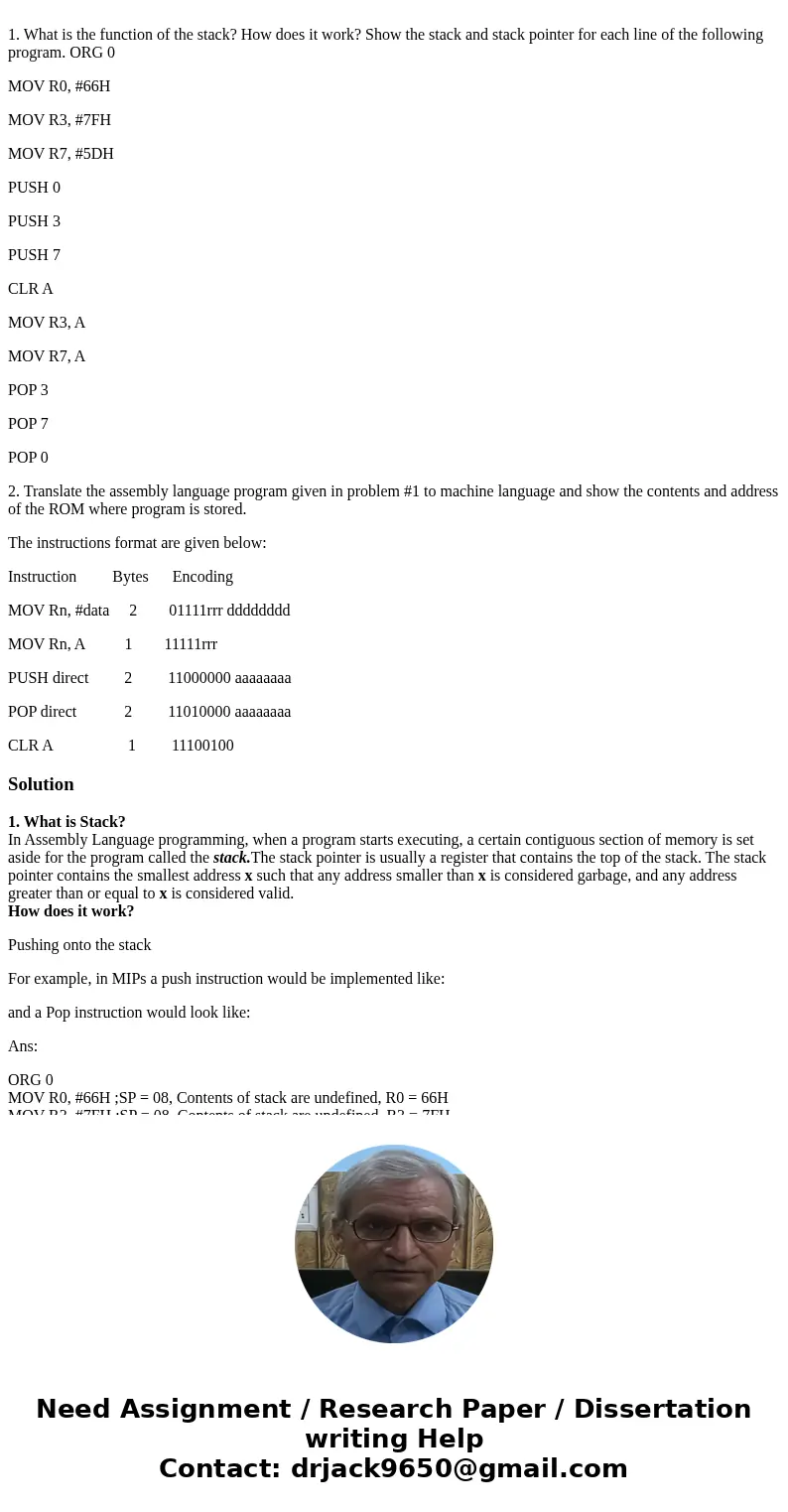

1. What is the function of the stack? How does it work? Show the stack and stack pointer for each line of the following program. ORG 0

MOV R0, #66H

MOV R3, #7FH

MOV R7, #5DH

PUSH 0

PUSH 3

PUSH 7

CLR A

MOV R3, A

MOV R7, A

POP 3

POP 7

POP 0

2. Translate the assembly language program given in problem #1 to machine language and show the contents and address of the ROM where program is stored.

The instructions format are given below:

Instruction         Bytes      Encoding

MOV Rn, #data     2        01111rrr dddddddd

MOV Rn, A          1        11111rrr

PUSH direct         2         11000000 aaaaaaaa

POP direct            2         11010000 aaaaaaaa

CLR A                   1         11100100

Solution

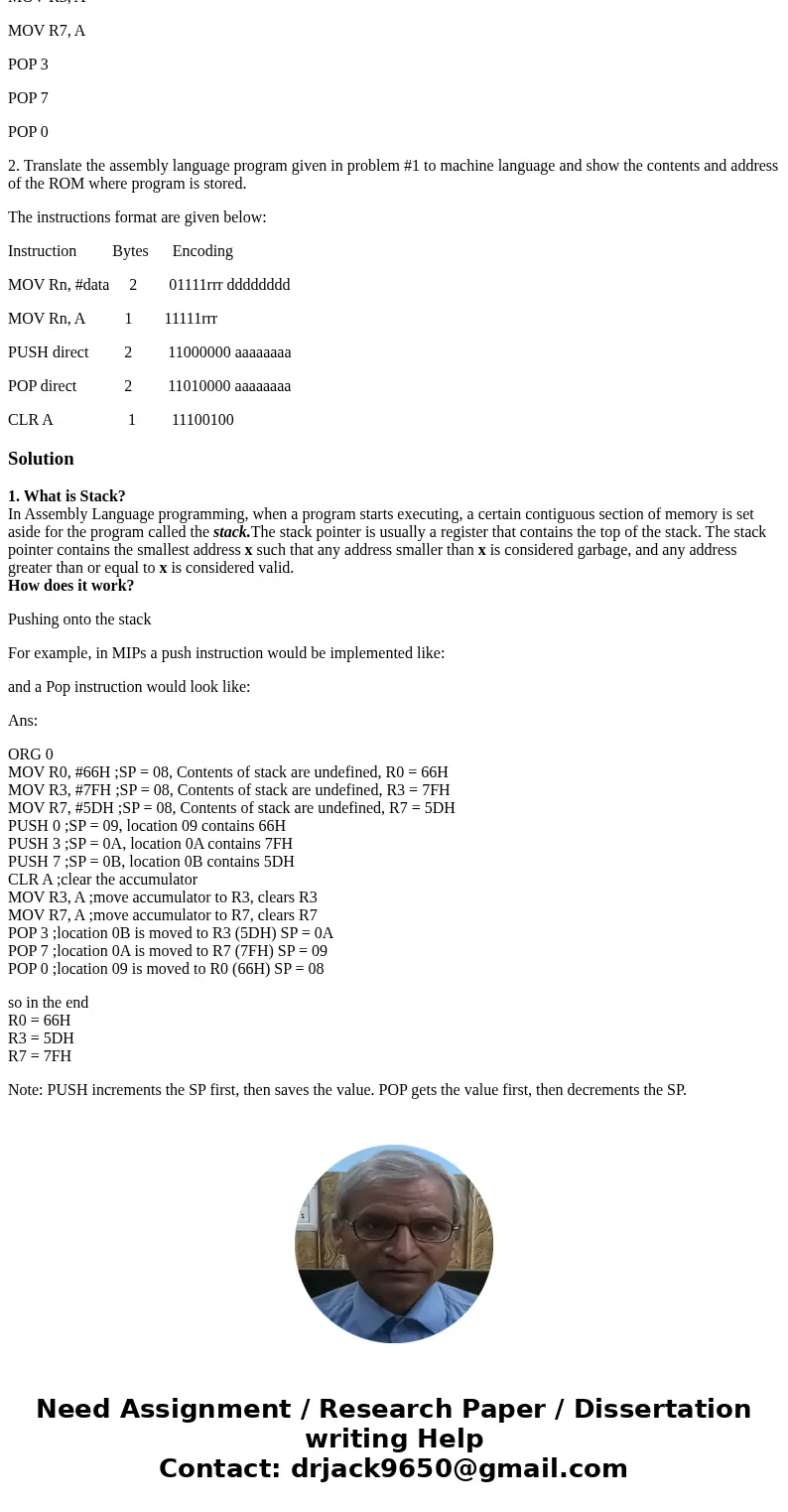

1. What is Stack?
In Assembly Language programming, when a program starts executing, a certain contiguous section of memory is set aside for the program called the stack.The stack pointer is usually a register that contains the top of the stack. The stack pointer contains the smallest address x such that any address smaller than x is considered garbage, and any address greater than or equal to x is considered valid.
How does it work?

Pushing onto the stack

For example, in MIPs a push instruction would be implemented like:

and a Pop instruction would look like:

Ans:

ORG 0
MOV R0, #66H ;SP = 08, Contents of stack are undefined, R0 = 66H
MOV R3, #7FH ;SP = 08, Contents of stack are undefined, R3 = 7FH
MOV R7, #5DH ;SP = 08, Contents of stack are undefined, R7 = 5DH
PUSH 0 ;SP = 09, location 09 contains 66H
PUSH 3 ;SP = 0A, location 0A contains 7FH
PUSH 7 ;SP = 0B, location 0B contains 5DH
CLR A ;clear the accumulator
MOV R3, A ;move accumulator to R3, clears R3
MOV R7, A ;move accumulator to R7, clears R7
POP 3 ;location 0B is moved to R3 (5DH) SP = 0A
POP 7 ;location 0A is moved to R7 (7FH) SP = 09
POP 0 ;location 09 is moved to R0 (66H) SP = 08

so in the end
R0 = 66H
R3 = 5DH
R7 = 7FH

Note: PUSH increments the SP first, then saves the value. POP gets the value first, then decrements the SP.
