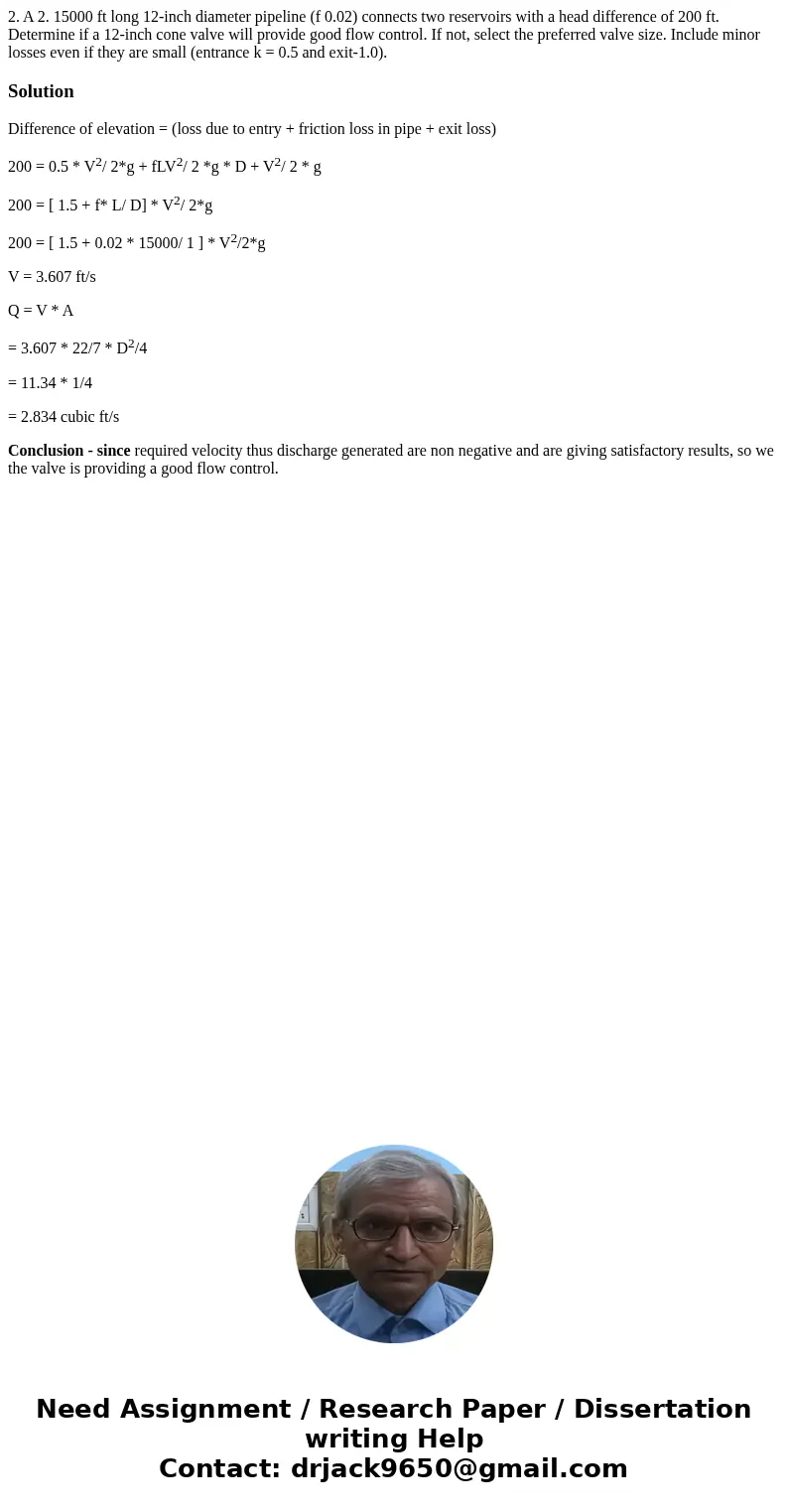

2. A 2. 15000 ft long 12-inch diameter pipeline (f 0.02) connects two reservoirs with a head difference of 200 ft. Determine if a 12-inch cone valve will provide good flow control. If not, select the preferred valve size. Include minor losses even if they are small (entrance k = 0.5 and exit-1.0).

Solution

Difference of elevation = (loss due to entry + friction loss in pipe + exit loss)

200 = 0.5 * V²/ 2*g + fLV²/ 2 *g * D + V²/ 2 * g

200 = [ 1.5 + f* L/ D] * V²/ 2*g

200 = [ 1.5 + 0.02 * 15000/ 1 ] * V²/2*g

V = 3.607 ft/s

Q = V * A

= 3.607 * 22/7 * D²/4

= 11.34 * 1/4

= 2.834 cubic ft/s

Conclusion - since required velocity thus discharge generated are non negative and are giving satisfactory results, so we the valve is providing a good flow control.
