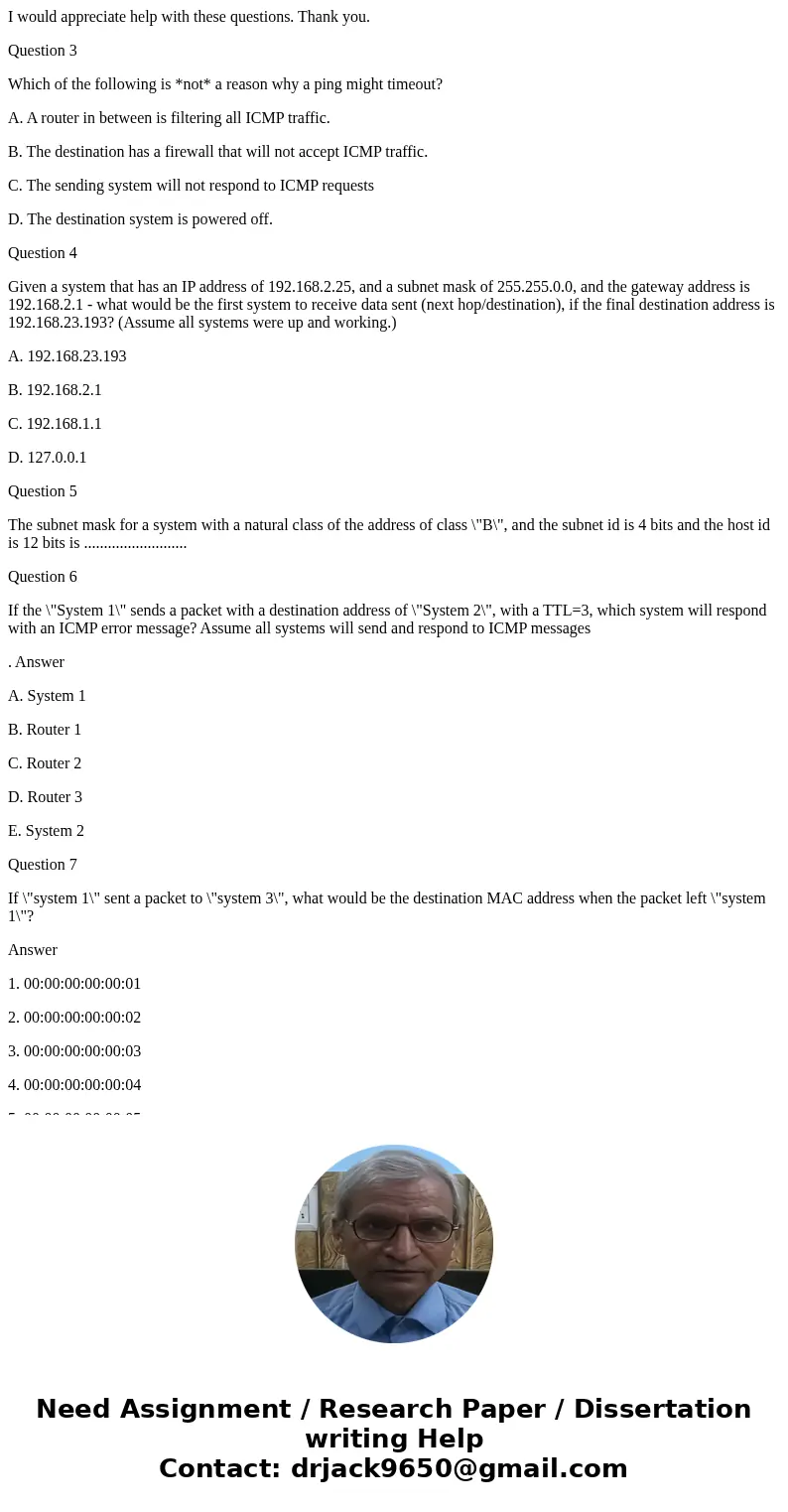

I would appreciate help with these questions Thank you Quest

I would appreciate help with these questions. Thank you.

Question 3

Which of the following is *not* a reason why a ping might timeout?

A. A router in between is filtering all ICMP traffic.

B. The destination has a firewall that will not accept ICMP traffic.

C. The sending system will not respond to ICMP requests

D. The destination system is powered off.

Question 4

Given a system that has an IP address of 192.168.2.25, and a subnet mask of 255.255.0.0, and the gateway address is 192.168.2.1 - what would be the first system to receive data sent (next hop/destination), if the final destination address is 192.168.23.193? (Assume all systems were up and working.)

A. 192.168.23.193

B. 192.168.2.1

C. 192.168.1.1

D. 127.0.0.1

Question 5

The subnet mask for a system with a natural class of the address of class \"B\", and the subnet id is 4 bits and the host id is 12 bits is ..........................

Question 6

If the \"System 1\" sends a packet with a destination address of \"System 2\", with a TTL=3, which system will respond with an ICMP error message? Assume all systems will send and respond to ICMP messages

. Answer

A. System 1

B. Router 1

C. Router 2

D. Router 3

E. System 2

Question 7

If \"system 1\" sent a packet to \"system 3\", what would be the destination MAC address when the packet left \"system 1\"?

Answer

1. 00:00:00:00:00:01

2. 00:00:00:00:00:02

3. 00:00:00:00:00:03

4. 00:00:00:00:00:04

5. 00:00:00:00:00:05

Question 8

If \"system 1\" is sending a packet to \"system 3\", what would the destination IP address be in the packet sent when it leaves \"system 1\"?

Answer

1. 192.168.1.1

2. 192.168.1.10

3. 192.168.1.11

4. 192.168.2.1

5. 192.168.2.10

Question 9

1. Describe the operation of RIP. Where can problems occur with RIP on large networks?

Question 10

1. What are the specific ICMP errors that are generated during a traceroute? In the diagram below, which systems would generate which messages, if the traceroute was being run from \"System 1\" to trace to \"System 2\"?

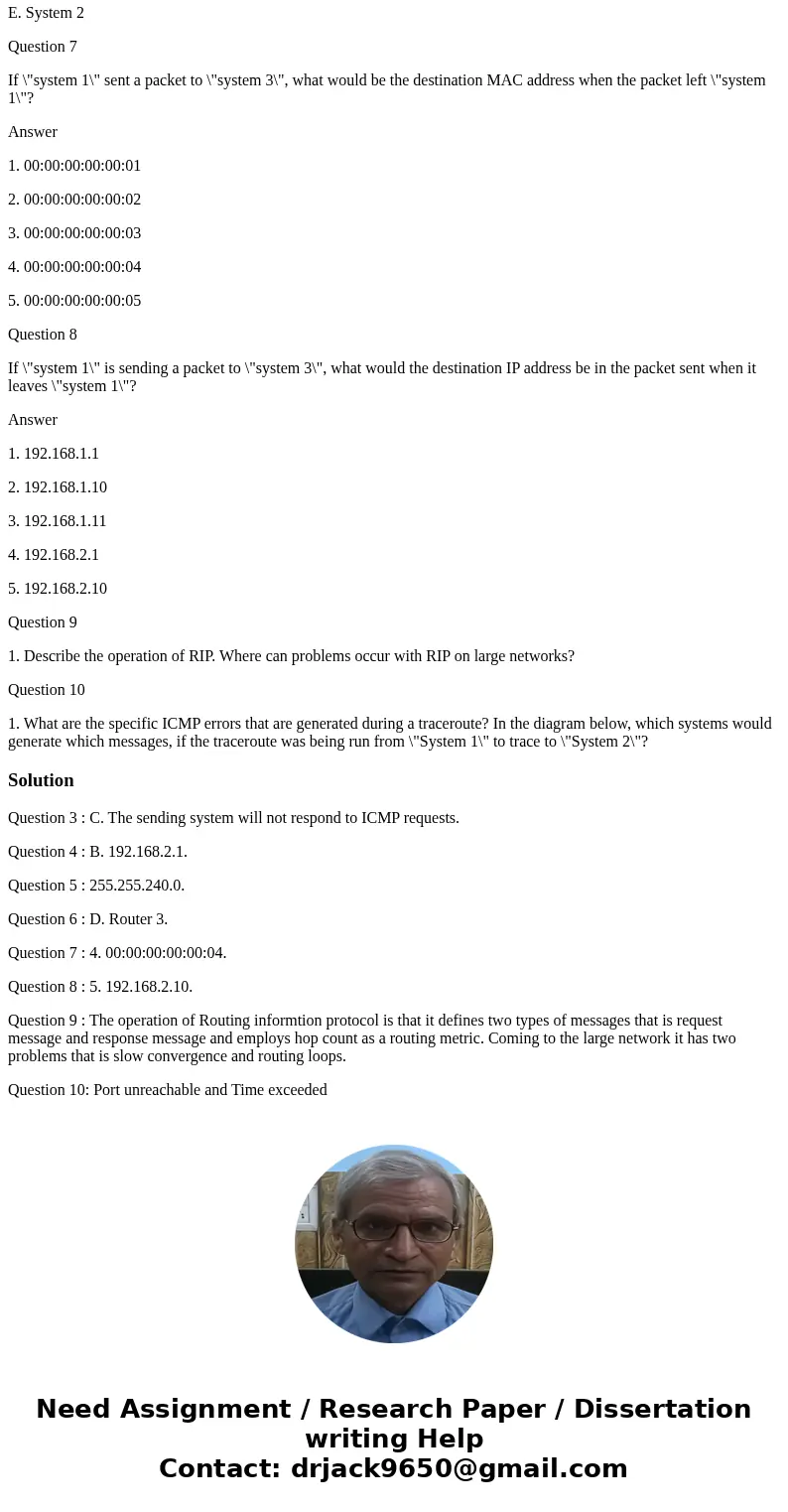

Solution

Question 3 : C. The sending system will not respond to ICMP requests.

Question 4 : B. 192.168.2.1.

Question 5 : 255.255.240.0.

Question 6 : D. Router 3.

Question 7 : 4. 00:00:00:00:00:04.

Question 8 : 5. 192.168.2.10.

Question 9 : The operation of Routing informtion protocol is that it defines two types of messages that is request message and response message and employs hop count as a routing metric. Coming to the large network it has two problems that is slow convergence and routing loops.

Question 10: Port unreachable and Time exceeded
