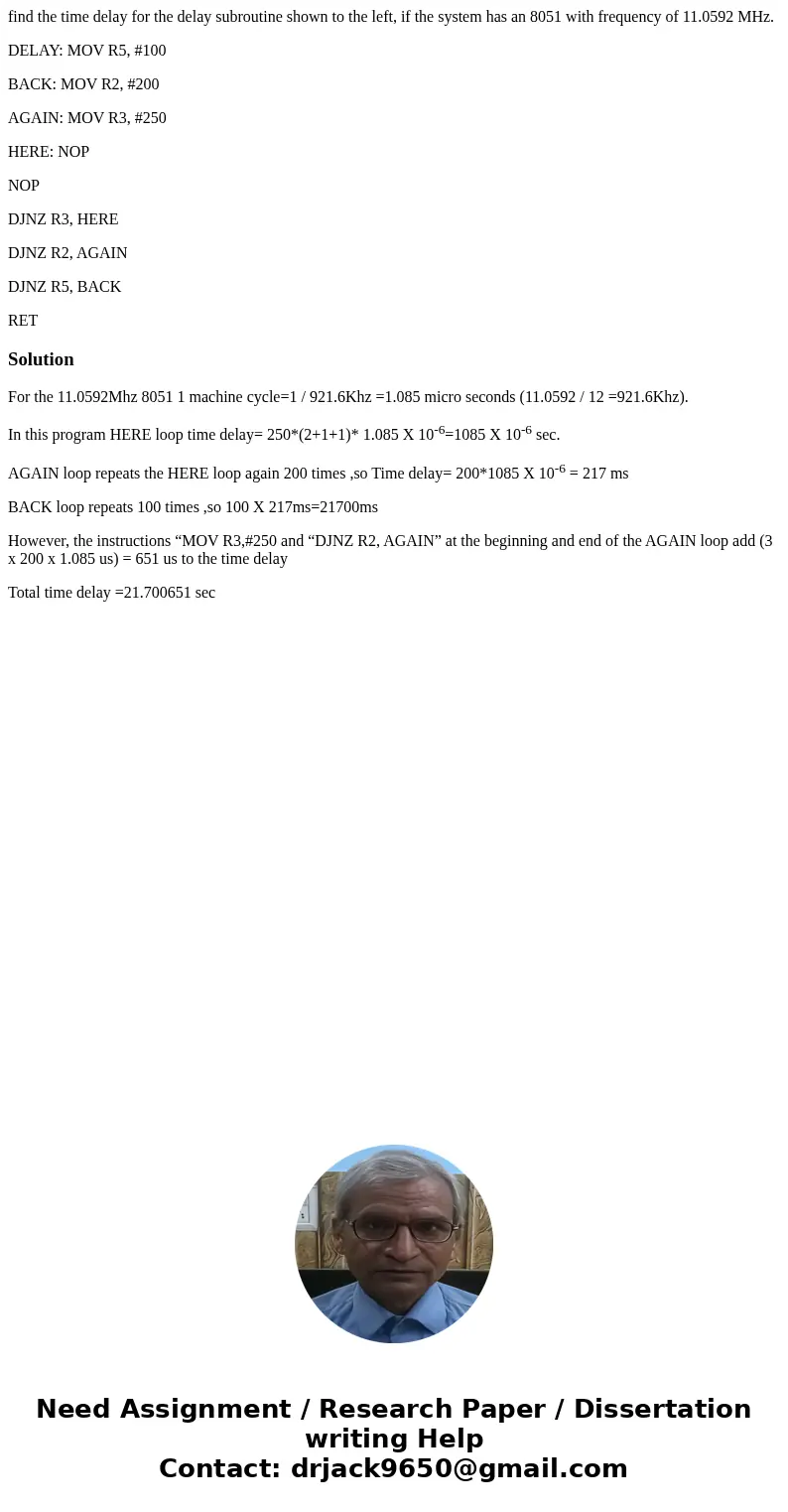

find the time delay for the delay subroutine shown to the left, if the system has an 8051 with frequency of 11.0592 MHz.

DELAY: MOV R5, #100

BACK: MOV R2, #200

AGAIN: MOV R3, #250

HERE: NOP

NOP

DJNZ R3, HERE

DJNZ R2, AGAIN

DJNZ R5, BACK

RET

Solution

For the 11.0592Mhz 8051 1 machine cycle=1 / 921.6Khz =1.085 micro seconds (11.0592 / 12 =921.6Khz).

In this program HERE loop time delay= 250*(2+1+1)* 1.085 X 10^-6=1085 X 10^-6 sec.

AGAIN loop repeats the HERE loop again 200 times ,so Time delay= 200*1085 X 10^-6 = 217 ms

BACK loop repeats 100 times ,so 100 X 217ms=21700ms

However, the instructions “MOV R3,#250 and “DJNZ R2, AGAIN” at the beginning and end of the AGAIN loop add (3 x 200 x 1.085 us) = 651 us to the time delay

Total time delay =21.700651 sec
