1 Web thickness of MC 6x18 will be most nearly A025inch B030

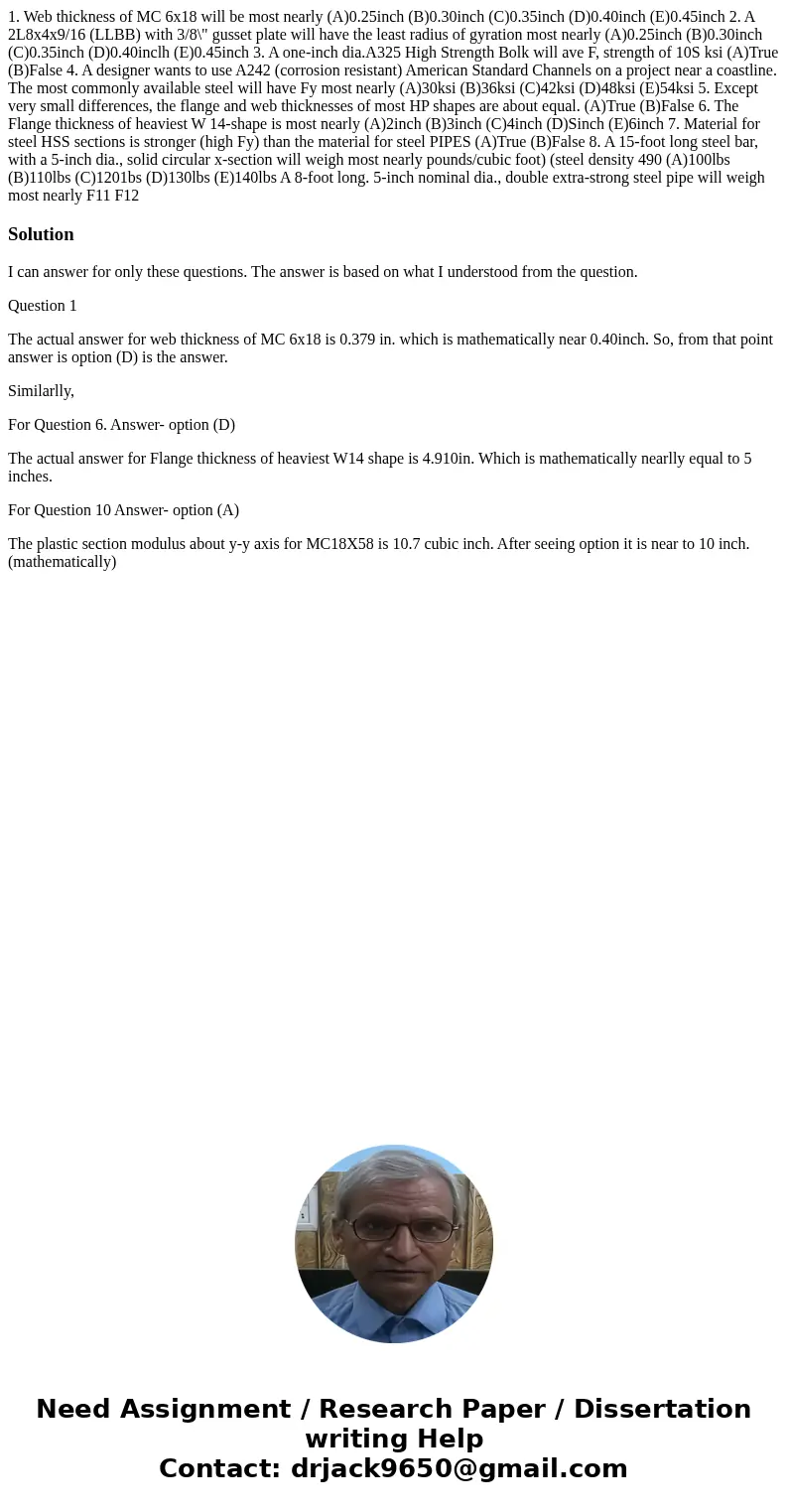

1. Web thickness of MC 6x18 will be most nearly (A)0.25inch (B)0.30inch (C)0.35inch (D)0.40inch (E)0.45inch 2. A 2L8x4x9/16 (LLBB) with 3/8\" gusset plate will have the least radius of gyration most nearly (A)0.25inch (B)0.30inch (C)0.35inch (D)0.40inclh (E)0.45inch 3. A one-inch dia.A325 High Strength Bolk will ave F, strength of 10S ksi (A)True (B)False 4. A designer wants to use A242 (corrosion resistant) American Standard Channels on a project near a coastline. The most commonly available steel will have Fy most nearly (A)30ksi (B)36ksi (C)42ksi (D)48ksi (E)54ksi 5. Except very small differences, the flange and web thicknesses of most HP shapes are about equal. (A)True (B)False 6. The Flange thickness of heaviest W 14-shape is most nearly (A)2inch (B)3inch (C)4inch (D)Sinch (E)6inch 7. Material for steel HSS sections is stronger (high Fy) than the material for steel PIPES (A)True (B)False 8. A 15-foot long steel bar, with a 5-inch dia., solid circular x-section will weigh most nearly pounds/cubic foot) (steel density 490 (A)100lbs (B)110lbs (C)1201bs (D)130lbs (E)140lbs A 8-foot long. 5-inch nominal dia., double extra-strong steel pipe will weigh most nearly F11 F12

Solution

I can answer for only these questions. The answer is based on what I understood from the question.

Question 1

The actual answer for web thickness of MC 6x18 is 0.379 in. which is mathematically near 0.40inch. So, from that point answer is option (D) is the answer.

Similarlly,

For Question 6. Answer- option (D)

The actual answer for Flange thickness of heaviest W14 shape is 4.910in. Which is mathematically nearlly equal to 5 inches.

For Question 10 Answer- option (A)

The plastic section modulus about y-y axis for MC18X58 is 10.7 cubic inch. After seeing option it is near to 10 inch. (mathematically)
