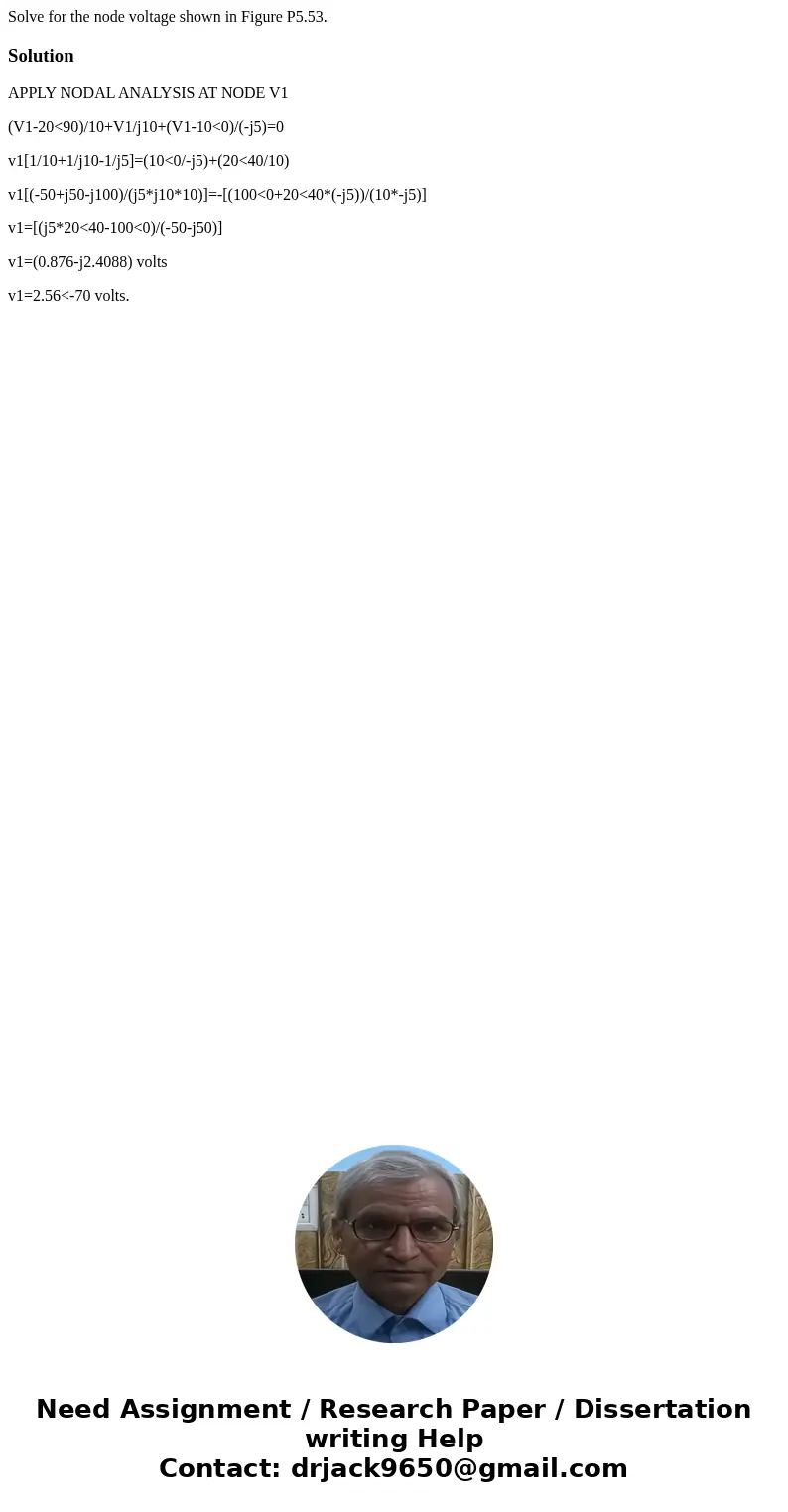

Solve for the node voltage shown in Figure P5.53. ![Solve for the node voltage shown in Figure P5.53. SolutionAPPLY NODAL ANALYSIS AT NODE V1 (V1-20<90)/10+V1/j10+(V1-10<0)/(-j5)=0 v1[1/10+1/j10-1/j5]=(10&](/WebImages/6/solve-for-the-node-voltage-shown-in-figure-p553-solutionappl-985839-1761506477-0.webp "Solve for the node voltage shown in Figure P5.53. SolutionAPPLY NODAL ANALYSIS AT NODE V1 (V1-20<90)/10+V1/j10+(V1-10<0)/(-j5)=0 v1[1/10+1/j10-1/j5]=(10&")
Solution
APPLY NODAL ANALYSIS AT NODE V1
(V1-20<90)/10+V1/j10+(V1-10<0)/(-j5)=0
v1[1/10+1/j10-1/j5]=(10<0/-j5)+(20<40/10)
v1[(-50+j50-j100)/(j5*j10*10)]=-[(100<0+20<40*(-j5))/(10*-j5)]
v1=[(j5*20<40-100<0)/(-50-j50)]
v1=(0.876-j2.4088) volts
v1=2.56<-70 volts.
