my problem is almost exactly like the one in the picture above except it\'s done using MatLab and solving for i1 I & i3.

The values for the picture above are E=10v, E2=15v, R1= 3ohms, R2=5ohms,& R3=2ohms. The result should be I=(3.23,3.06,-0.16)

use the input() function for data input..
use the disp() function to produce the output.

MetroF 419 ..11 20% 7:02 PM Question 1 SOLUTION F3 C. c-aen E. is aching alone E, Eea o410 We tile

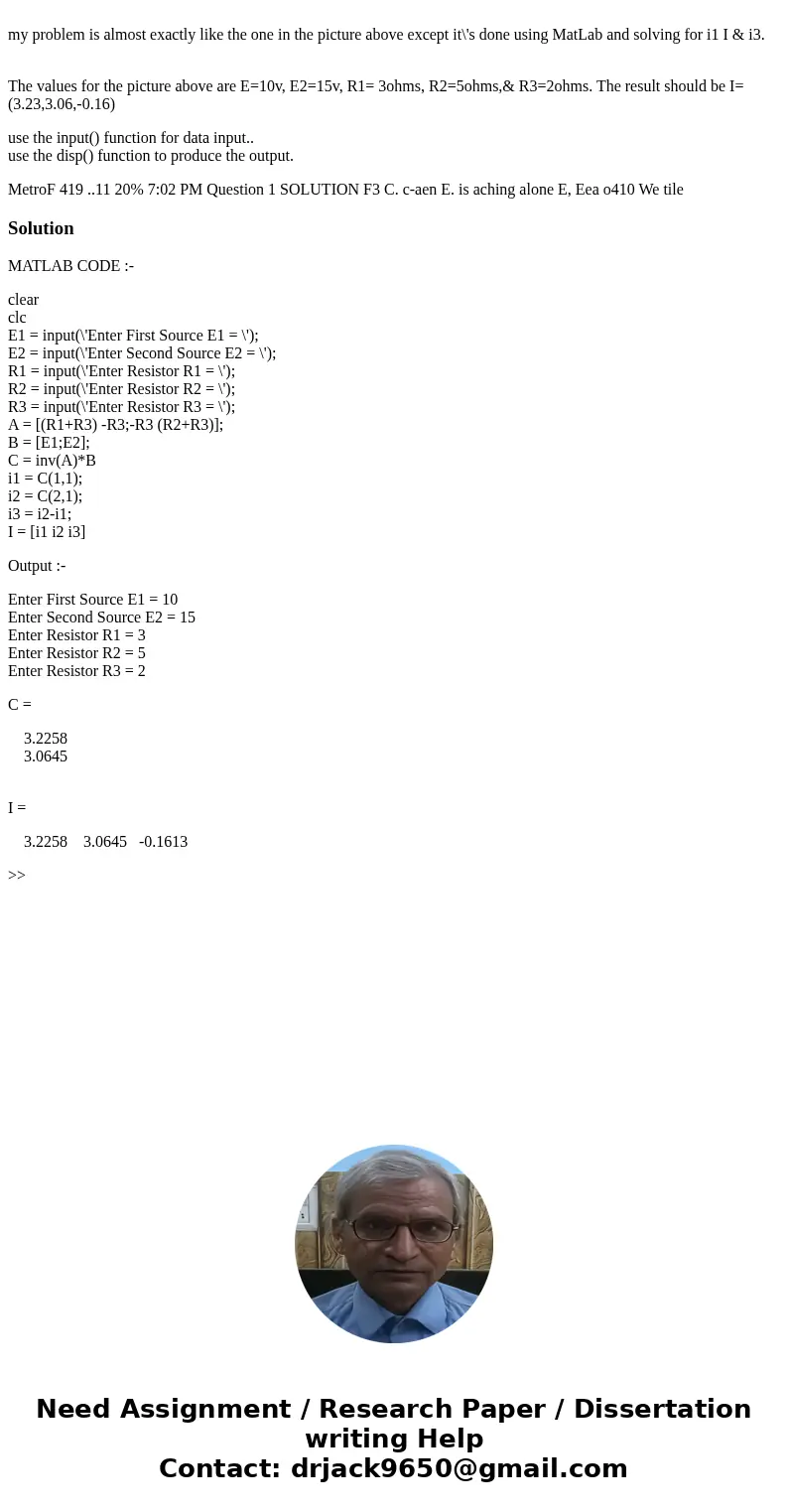

Solution

MATLAB CODE :-

clear
clc
E1 = input(\'Enter First Source E1 = \');
E2 = input(\'Enter Second Source E2 = \');
R1 = input(\'Enter Resistor R1 = \');
R2 = input(\'Enter Resistor R2 = \');
R3 = input(\'Enter Resistor R3 = \');
A = [(R1+R3) -R3;-R3 (R2+R3)];
B = [E1;E2];
C = inv(A)*B
i1 = C(1,1);
i2 = C(2,1);
i3 = i2-i1;
I = [i1 i2 i3]

Output :-

Enter First Source E1 = 10
Enter Second Source E2 = 15
Enter Resistor R1 = 3
Enter Resistor R2 = 5
Enter Resistor R3 = 2

C =

    3.2258
    3.0645

I =

    3.2258    3.0645   -0.1613

>>
