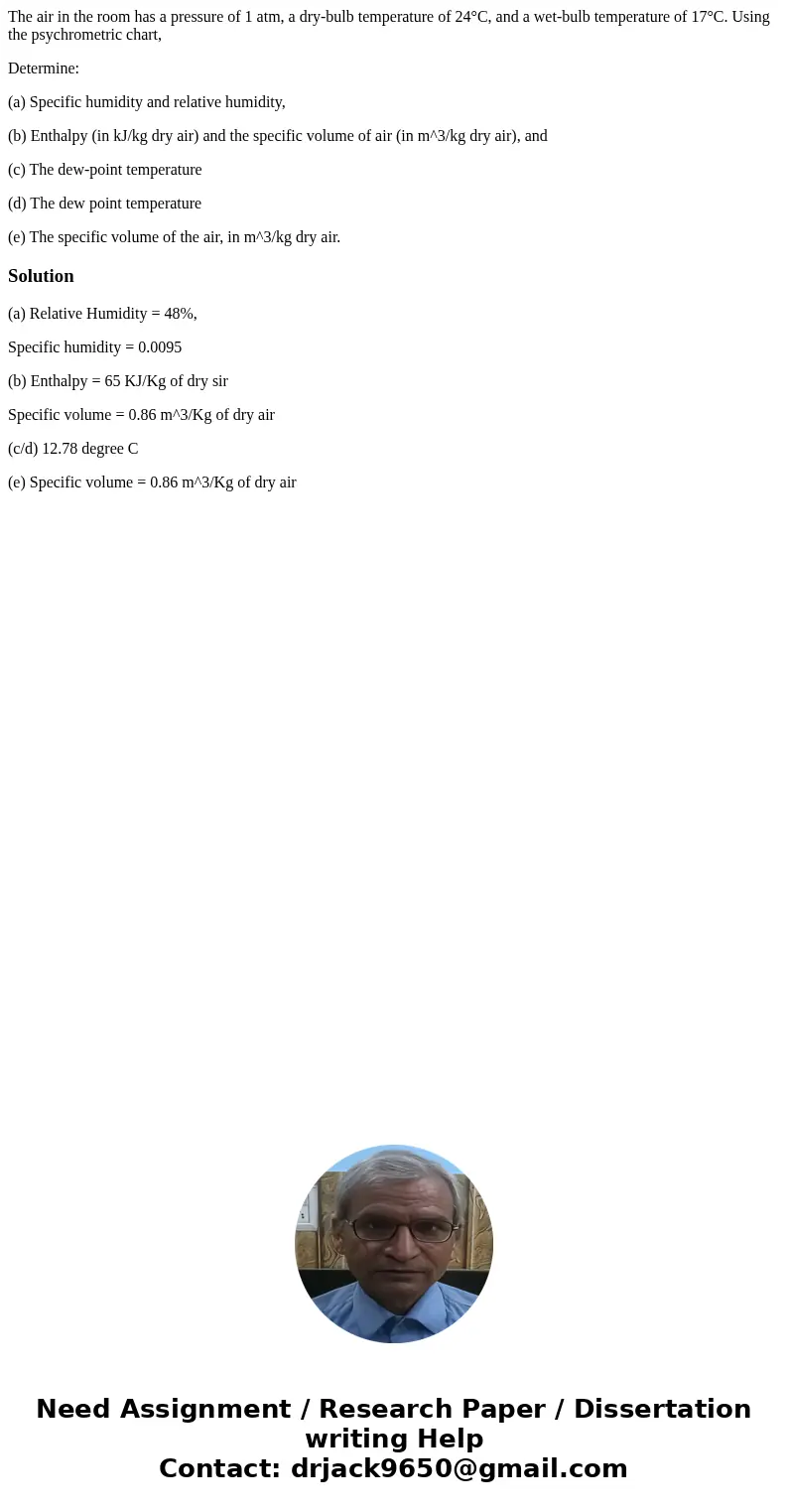

The air in the room has a pressure of 1 atm, a dry-bulb temperature of 24°C, and a wet-bulb temperature of 17°C. Using the psychrometric chart,

Determine:

(a) Specific humidity and relative humidity,

(b) Enthalpy (in kJ/kg dry air) and the specific volume of air (in m^3/kg dry air), and

(d) The dew point temperature

(e) The specific volume of the air, in m^3/kg dry air.

(a) Relative Humidity = 48%,

Specific humidity = 0.0095

(b) Enthalpy = 65 KJ/Kg of dry sir

Specific volume = 0.86 m^3/Kg of dry air

(c/d) 12.78 degree C

(e) Specific volume = 0.86 m^3/Kg of dry air
