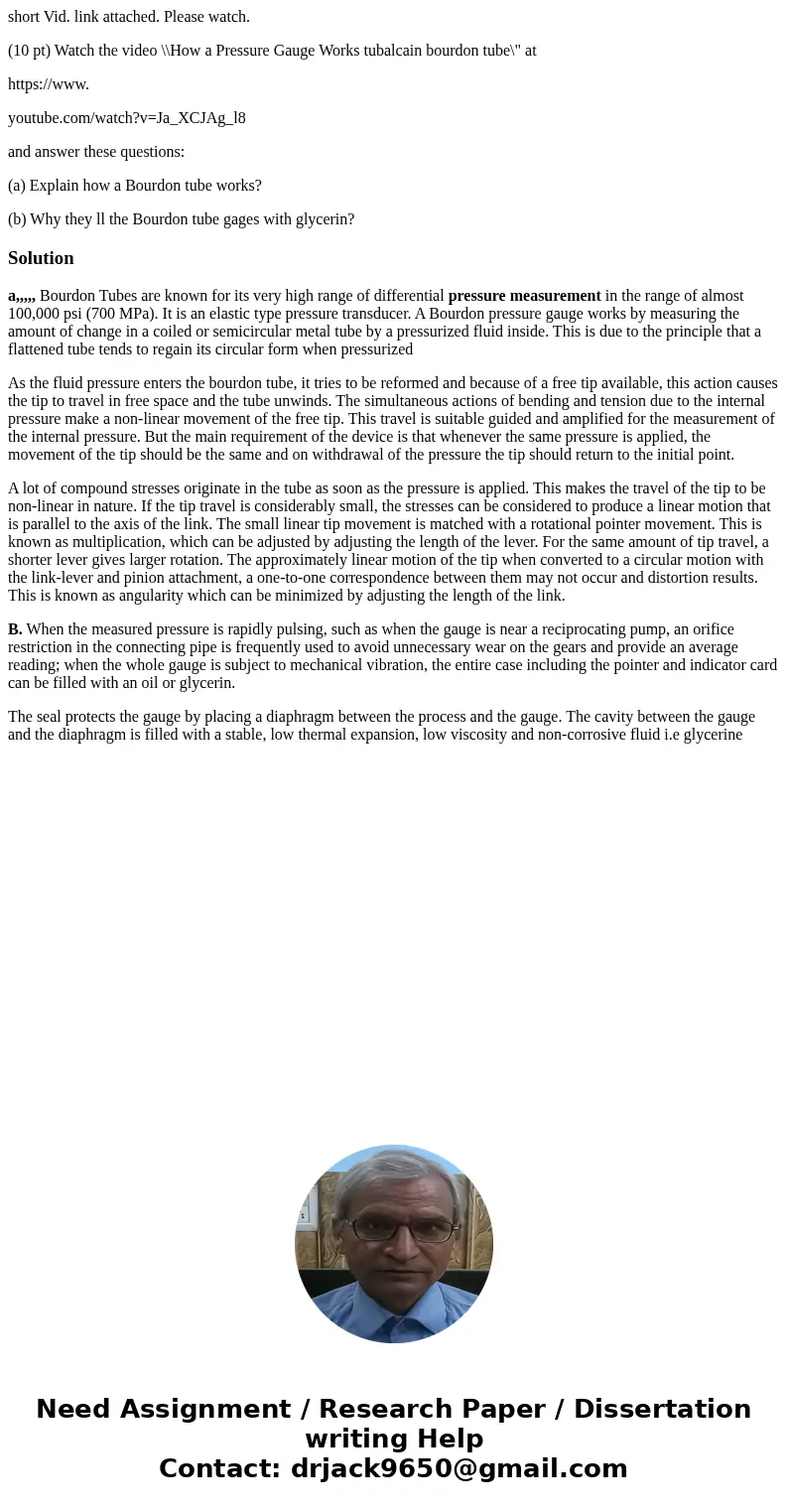

short Vid. link attached. Please watch.

(10 pt) Watch the video \\How a Pressure Gauge Works tubalcain bourdon tube\" at

https://www.

youtube.com/watch?v=Ja_XCJAg_l8

and answer these questions:

(a) Explain how a Bourdon tube works?

(b) Why they ll the Bourdon tube gages with glycerin?

Solution

a,,,,, Bourdon Tubes are known for its very high range of differential pressure measurement in the range of almost 100,000 psi (700 MPa). It is an elastic type pressure transducer. A Bourdon pressure gauge works by measuring the amount of change in a coiled or semicircular metal tube by a pressurized fluid inside. This is due to the principle that a flattened tube tends to regain its circular form when pressurized

As the fluid pressure enters the bourdon tube, it tries to be reformed and because of a free tip available, this action causes the tip to travel in free space and the tube unwinds. The simultaneous actions of bending and tension due to the internal pressure make a non-linear movement of the free tip. This travel is suitable guided and amplified for the measurement of the internal pressure. But the main requirement of the device is that whenever the same pressure is applied, the movement of the tip should be the same and on withdrawal of the pressure the tip should return to the initial point.

A lot of compound stresses originate in the tube as soon as the pressure is applied. This makes the travel of the tip to be non-linear in nature. If the tip travel is considerably small, the stresses can be considered to produce a linear motion that is parallel to the axis of the link. The small linear tip movement is matched with a rotational pointer movement. This is known as multiplication, which can be adjusted by adjusting the length of the lever. For the same amount of tip travel, a shorter lever gives larger rotation. The approximately linear motion of the tip when converted to a circular motion with the link-lever and pinion attachment, a one-to-one correspondence between them may not occur and distortion results. This is known as angularity which can be minimized by adjusting the length of the link.

B. When the measured pressure is rapidly pulsing, such as when the gauge is near a reciprocating pump, an orifice restriction in the connecting pipe is frequently used to avoid unnecessary wear on the gears and provide an average reading; when the whole gauge is subject to mechanical vibration, the entire case including the pointer and indicator card can be filled with an oil or glycerin.

The seal protects the gauge by placing a diaphragm between the process and the gauge. The cavity between the gauge and the diaphragm is filled with a stable, low thermal expansion, low viscosity and non-corrosive fluid i.e glycerine
