Problem 4 Given a singly reinforced beam with fy60 ksifc5500

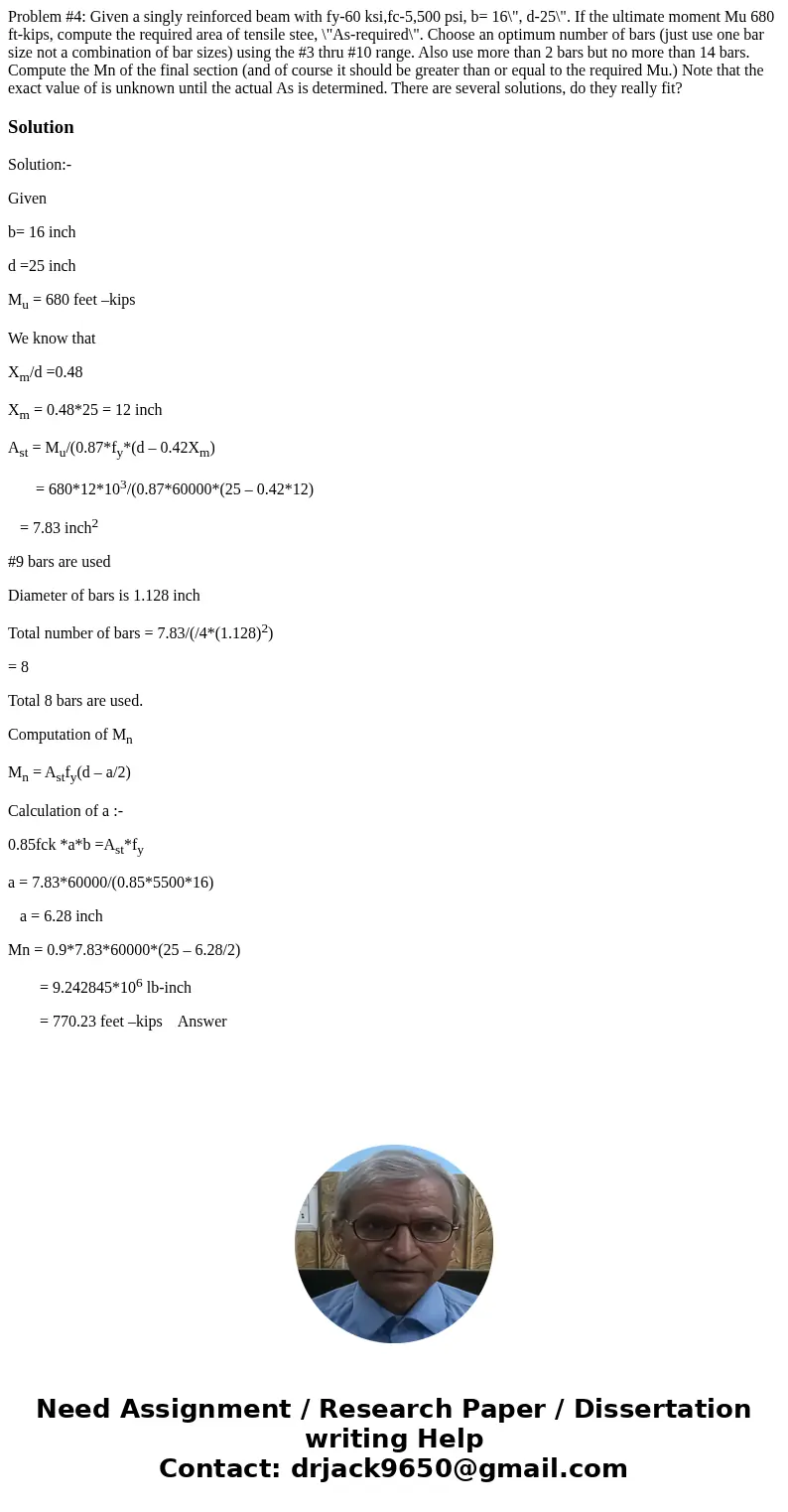

Problem #4: Given a singly reinforced beam with fy-60 ksi,fc-5,500 psi, b= 16\", d-25\". If the ultimate moment Mu 680 ft-kips, compute the required area of tensile stee, \"As-required\". Choose an optimum number of bars (just use one bar size not a combination of bar sizes) using the #3 thru #10 range. Also use more than 2 bars but no more than 14 bars. Compute the Mn of the final section (and of course it should be greater than or equal to the required Mu.) Note that the exact value of is unknown until the actual As is determined. There are several solutions, do they really fit?

Solution

Solution:-

Given

b= 16 inch

d =25 inch

M_u = 680 feet –kips

We know that

X_m/d =0.48

X_m = 0.48*25 = 12 inch

A_st = M_u/(0.87*f_y*(d – 0.42X_m)

       = 680*12*10³/(0.87*60000*(25 – 0.42*12)

   = 7.83 inch²

#9 bars are used

Diameter of bars is 1.128 inch

Total number of bars = 7.83/(/4*(1.128)²)

= 8

Total 8 bars are used.

Computation of M_n

M_n = A_stf_y(d – a/2)

Calculation of a :-

0.85fck *a*b =A_st*f_y

a = 7.83*60000/(0.85*5500*16)

   a = 6.28 inch

Mn = 0.9*7.83*60000*(25 – 6.28/2)

        = 9.242845*10⁶ lb-inch

        = 770.23 feet –kips    Answer
