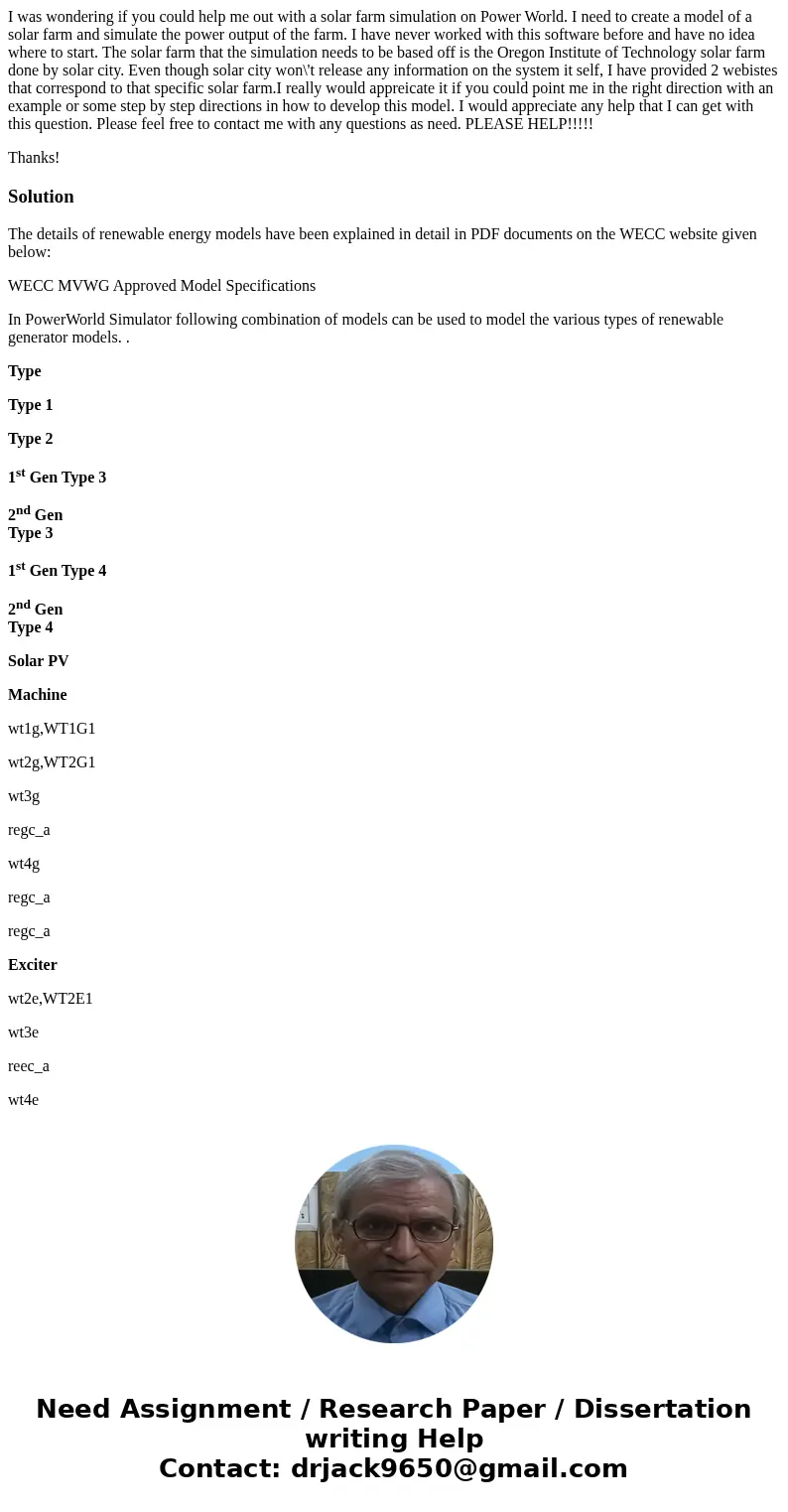

I was wondering if you could help me out with a solar farm simulation on Power World. I need to create a model of a solar farm and simulate the power output of the farm. I have never worked with this software before and have no idea where to start. The solar farm that the simulation needs to be based off is the Oregon Institute of Technology solar farm done by solar city. Even though solar city won\'t release any information on the system it self, I have provided 2 webistes that correspond to that specific solar farm.I really would appreicate it if you could point me in the right direction with an example or some step by step directions in how to develop this model. I would appreciate any help that I can get with this question. Please feel free to contact me with any questions as need. PLEASE HELP!!!!!

Thanks!

Solution

The details of renewable energy models have been explained in detail in PDF documents on the WECC website given below:

WECC MVWG Approved Model Specifications

In PowerWorld Simulator following combination of models can be used to model the various types of renewable generator models. .

Type

Type 1

Type 2

1^st Gen Type 3

2^nd Gen
Type 3

1^st Gen Type 4

2^nd Gen
Type 4

Solar PV

Machine

wt1g,WT1G1

wt2g,WT2G1

wt3g

regc_a

wt4g

regc_a

regc_a

Exciter

wt2e,WT2E1

wt3e

reec_a

wt4e

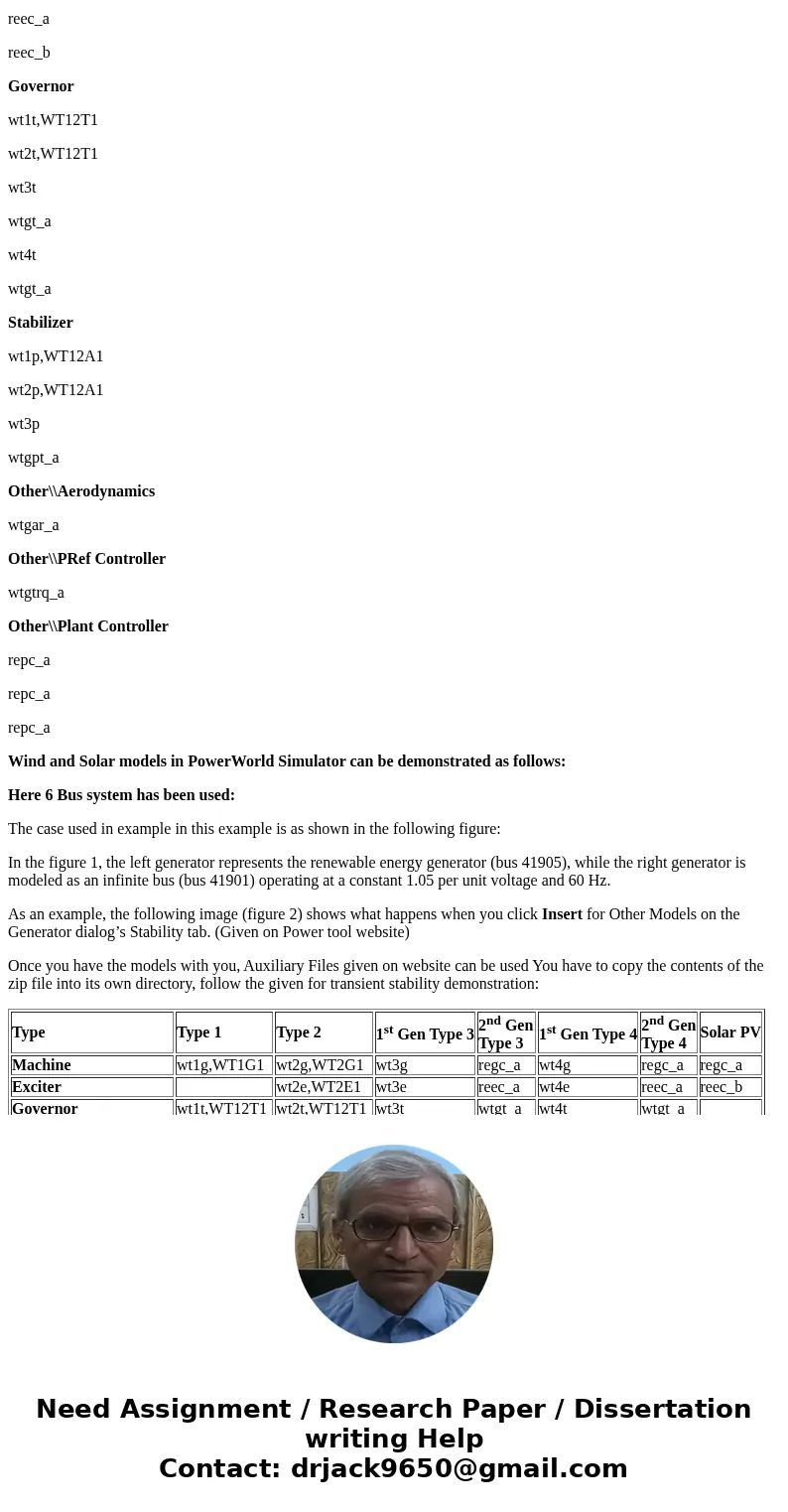

reec_a

reec_b

Governor

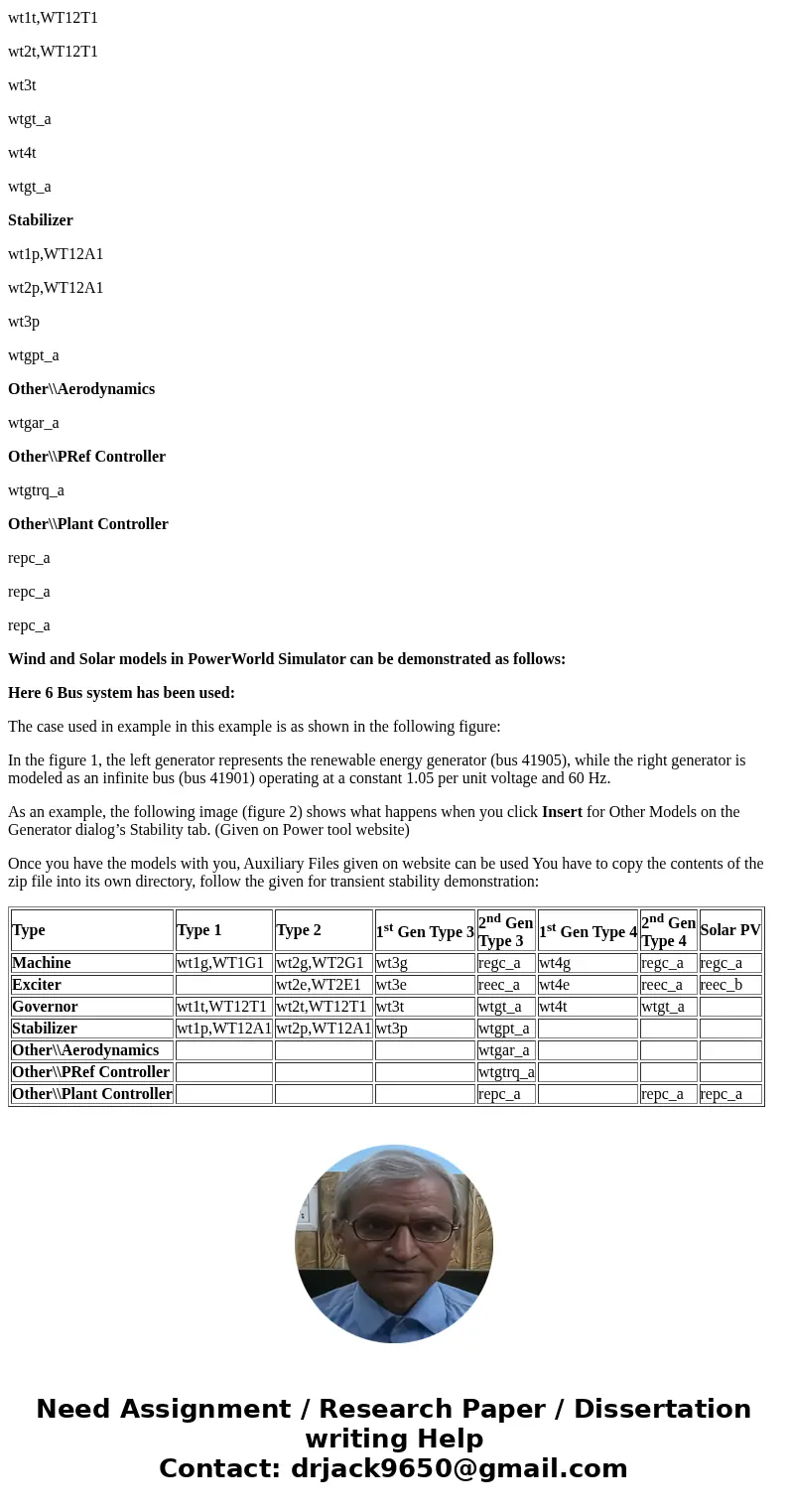

wt1t,WT12T1

wt2t,WT12T1

wt3t

wtgt_a

wt4t

wtgt_a

Stabilizer

wt1p,WT12A1

wt2p,WT12A1

wt3p

wtgpt_a

Other\\Aerodynamics

wtgar_a

Other\\PRef Controller

wtgtrq_a

Other\\Plant Controller

repc_a

repc_a

repc_a

Wind and Solar models in PowerWorld Simulator can be demonstrated as follows:

Here 6 Bus system has been used:

The case used in example in this example is as shown in the following figure:

In the figure 1, the left generator represents the renewable energy generator (bus 41905), while the right generator is modeled as an infinite bus (bus 41901) operating at a constant 1.05 per unit voltage and 60 Hz.

As an example, the following image (figure 2) shows what happens when you click Insert for Other Models on the Generator dialog’s Stability tab. (Given on Power tool website)

Once you have the models with you, Auxiliary Files given on website can be used You have to copy the contents of the zip file into its own directory, follow the given for transient stability demonstration:

Type	Type 1	Type 2	1st Gen Type 3	2nd Gen Type 3	1st Gen Type 4	2nd Gen Type 4	Solar PV
Machine	wt1g,WT1G1	wt2g,WT2G1	wt3g	regc_a	wt4g	regc_a	regc_a
Exciter		wt2e,WT2E1	wt3e	reec_a	wt4e	reec_a	reec_b
Governor	wt1t,WT12T1	wt2t,WT12T1	wt3t	wtgt_a	wt4t	wtgt_a
Stabilizer	wt1p,WT12A1	wt2p,WT12A1	wt3p	wtgpt_a
Other\\Aerodynamics				wtgar_a
Other\\PRef Controller				wtgtrq_a
Other\\Plant Controller				repc_a		repc_a	repc_a
